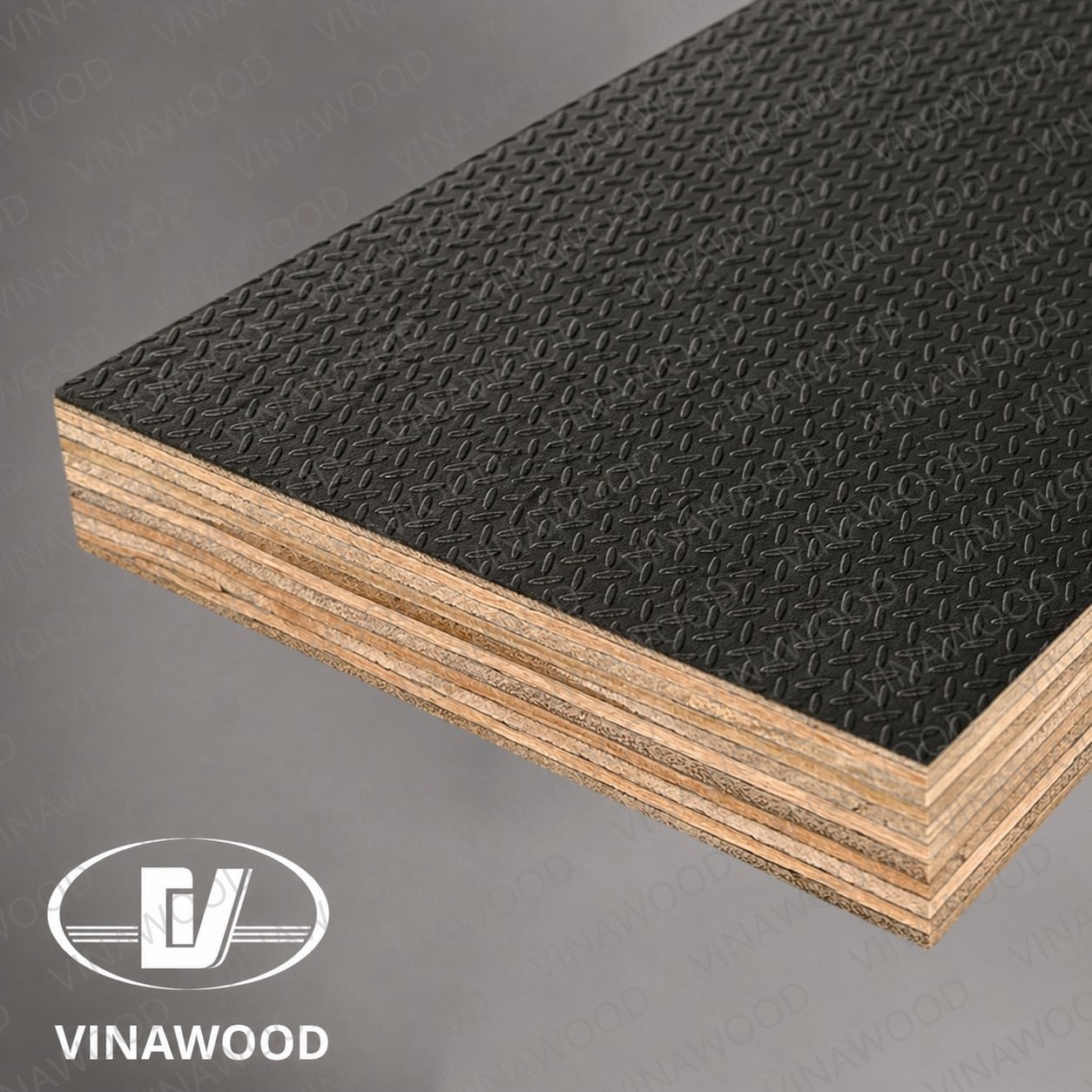

Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm

Anti-slip Plywood

Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm

SKU: ATS01002440122021

21mm T · 1220×2440 mm · ~37.508 kg/sheet · ρ ≈ 600 kg/m³

Vinawood Wiremesh Anti-slip 1SF Film Faced Plywood is designed for applications requiring enhanced grip, durability, and reliable performance. The panel features a textured wiremesh surface on one side for improved slip resistance and a smooth phenolic film surface on the other side for added protection. Manufactured with a high-quality hardwood core and durable phenolic bonding, it is suitable for flooring, platforms, vehicle decking, scaffolding, and other demanding applications.

Product family

Wiremesh Anti-slip Plywood 1SF

Specifications

Basic Specifications

Number of plies
13
Grade
AA GradePremium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.
Color
Dark BrownDeep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.Deep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.
Application
DeckingWiremesh plywood (also known as anti-slip plywood) is designed to provide a durable, high-traction surface in environments where safety and heavy wear are primary concerns. It features a textured phenolic film coating that prevents slipping even in wet or oily conditions.Wiremesh plywood (also known as anti-slip plywood) is designed to provide a durable, high-traction surface in environments where safety and heavy wear are primary concerns. It features a textured phenolic film coating that prevents slipping even in wet or oily conditions.
Back
Phenolic Surface Film - Top grade 125 gsmTop-quality 125 g/m² phenolic resin film on the back surface. Provides balanced moisture protection and dimensional stability to complement the face overlay, extending overall panel life in formwork applications.Top-quality 125 g/m² phenolic resin film on the back surface. Provides balanced moisture protection and dimensional stability to complement the face overlay, extending overall panel life in formwork applications.
Back Color
Dark BrownSolid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.
Core Grade
AA GradeCore veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.
Face
Phenolic Wiremesh
Face Color
Dark BrownDeep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.Deep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.
Glue
WBP PhenolicWater Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.
Moisture Content (%)
12
Wood Species
AcaciaAcacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.EucalyptusEucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.

Dimensions

Cubic meter per piece
0.06
Piece per Cubic Meter
16
Piece per Square Meter
0.34
Square Meter per Cubic meter
47.62
Square meter per piece
2.98
Thickness Tolerance (mm)
According to EN315 +0.8 / -1.0
Width & Length Tolerances (mm)
1mm per 1 meter

Weight

Weight per piece (lbs)
82.69

Mechanical Properties

Bending Stiffness Across Grain (N/mm2)
2.39
Bending Stiffness Along Grain (N/mm2)
2.9
Bonding Strength (N/mm2)
1
Modulus of Elasticity (Across Grain) (N/mm2)
2,500
Modulus of Elasticity (Along Grain) (N/mm2)
5,000
Bending Strength (Across Grain) (N/mm2)
25
Bending Strength (Along Grain) (N/mm2)
40
Shear Strength Across Grain (N/mm2)
1.92
Shear Strength Along Grain (N/mm2)
2.12

Physical Properties

Moisture Content (%)
12
Thickness Swelling (%)
8

Chemical Properties

Formaldehyde Emissions
E1Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.

EU Required Information

EU Glue Class
Class 3

Compliance

CARB Phase 2 Compliant
Yes
CE Marking
Yes
REACH Compliant
Yes
Applicable Certifications
ISO9001 CertificationInternational quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.EN13986 CE MarkingEuropean harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).FSC COC CertificationForest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.

Shipping

Max bundles per flatbed
13
Max Loading per 20ft container (bundles)
8
Max Loading per 40ft container (bundles)
16

Packaging

One Bundle Loading Standard (Pieces)
40
Product Packaging
9 image(s)
Standard bundle height (ft)
2.76
Standard Bundle Height (mm)
840
Standard bundle length (ft)
8.01
Standard Bundle Length (mm)
2,440
Standard Bundle Weight (kg)
1,500.31
Standard bundle width (ft)
4
Standard Bundle Width (mm)
1,220
Weight per bundle (lbs)
3,307.61

Frequently Asked Questions

What is Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm used for?
Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm is a plywood product manufactured by Vinawood, suitable for anti-slip plywood applications. Contact our sales team for specific application guidance.
What are the dimensions of Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm?
Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm is available in 21mm T · 1220×2440 mm, weighing approximately 37.508 kg per sheet with a density of approximately 600 kg/m³.
What certifications does Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm have?
Vinawood maintains compliance with international standards including EPA TSCA Title VI (CARB P2), FSC Chain of Custody, CE marking, and EUDR traceability. Specific certification documents are provided with each shipment. Contact our team for the latest compliance details.
How can I order Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm?
You can request a quotation by contacting our sales team through the inquiry form on this page, or reach out directly via our contact page. We provide competitive FOB pricing, factory-direct from Vietnam.
Can I get samples of Wiremesh Anti-slip Plywood 1SF 2440x1220x21 mm?
Yes, Vinawood provides product samples upon request. Contact our sales team with your specifications and we will arrange sample delivery to help you evaluate the product before placing a bulk order.
