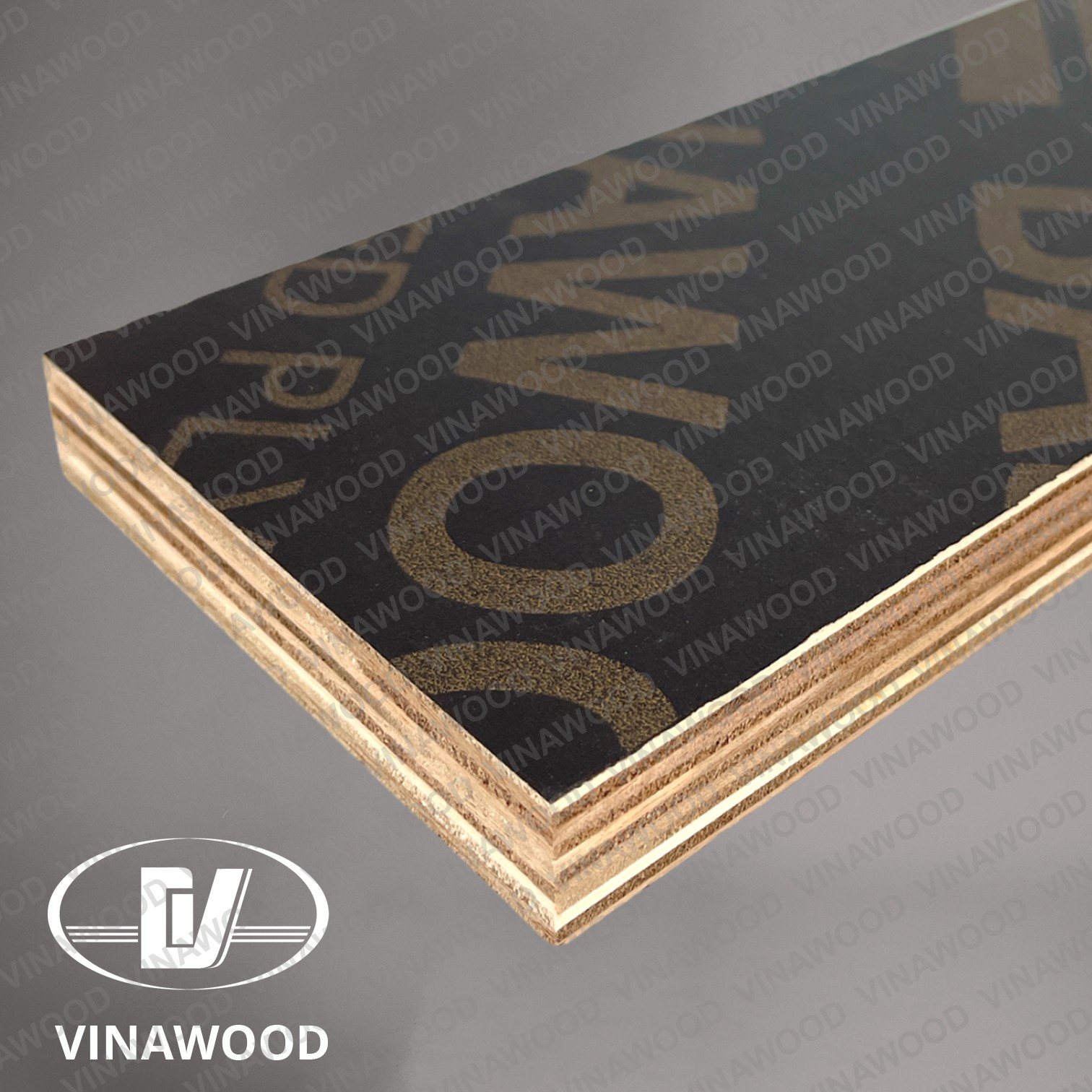

Form Basic 2500x1250x12 mm

Basic Specifications

Number of plies

7

Grade

AA Grade

Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.

Color

Dark Brown

Deep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.

Application

Formwork

Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.

Back

Phenolic Surface Film - High-gsm Standard 165 gsm

Standard 165 g/m² phenolic film on the back surface. Provides enhanced moisture resistance and dimensional stability for formwork panels requiring balanced face-and-back protection during repeated concrete pours.

Back Color

Dark Brown

Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.

Core Grade

AA Grade

Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.

Face

Phenolic Surface Film - High-gsm Standard 165 gsm

Standard-grade phenolic resin film at 165 g/m². Offers dependable moisture resistance and surface durability for mid-range formwork applications with 10–15 reuse cycles at a competitive price point.

Face Color

Dark Brown

Deep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.

Glue

WBP Melamine Standard

Water Boil Proof melamine-based adhesive at standard grade. Provides excellent moisture resistance with lighter-colored glue lines than phenolic resin, suitable for exterior-rated and formwork plywood applications.

Maximum Repetition

10

Moisture Content (%)

12

Wood Species

Acacia, Eucalyptus

Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.; Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.

Dimensions

Cubic meter per piece

0.04

Piece per Cubic Meter

26.67

Piece per Square Meter

0.32

Square Meter per Cubic meter

83.33

Square meter per piece

3.13

Thickness Tolerance (mm)

According to EN315: +0.74 / -0.94

Width & Length Tolerances (mm)

1mm per 1 meter

Mechanical Properties

Bending Stiffness Across Grain (N/mm2)

2.5

Bending Stiffness Along Grain (N/mm2)

3

Bonding Strength (N/mm2)

1

Mean Modulus of Elasticity (Across Grain) (N/mm2)

3000

Mean Modulus of Elasticity (Along Grain) (N/mm2)

5000

Min Bending Strength (Across Grain) (N/mm2)

30

Min Bending Strength (Along Grain) (N/mm2)

45

Shear Strength Across Grain (N/mm2)

2

Shear Strength Along Grain (N/mm2)

2.2

Physical Properties

Moisture Content (%)

12

Thickness Swelling (%)

8

Chemical Properties

Formaldehyde Emissions

E2

Formaldehyde emission class E2 (≤5.0 mg/L). Suitable for exterior, well-ventilated, or short-term applications such as construction formwork where panels are not used in enclosed living spaces.

Applicable Certifications

ISO9001 Certification, EN13986 CE Marking, FSC COC Certification

International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.; European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).; Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.

Packaging

One Bundle Loading Standard (Pieces)

70

Product Packaging

9 image(s)

Standard Bundle Height (mm)

940

Standard Bundle Length (mm)

2500

Standard Bundle Weight (kg)

1575

Standard Bundle Width (mm)

1250
