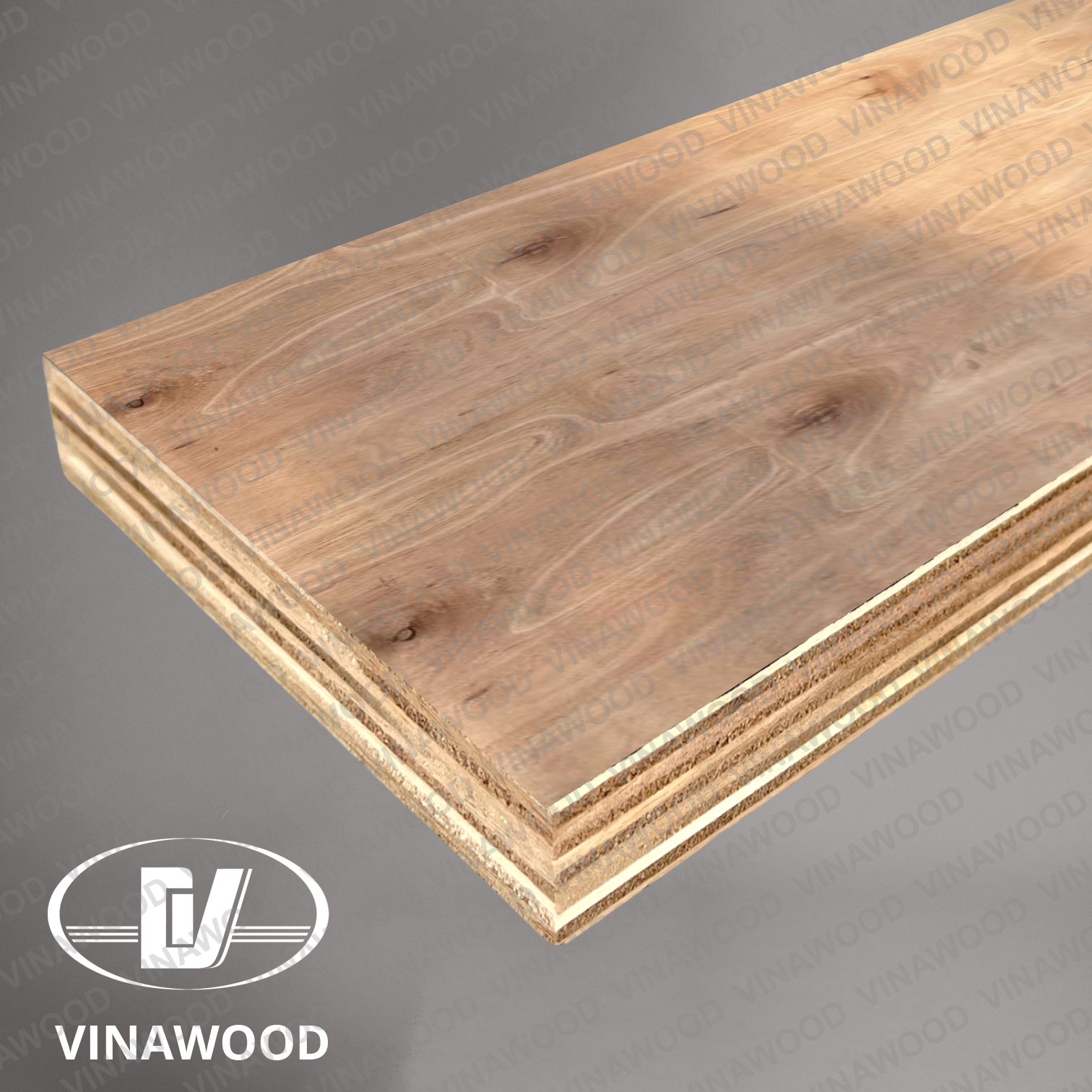

KS Concrete Panel Standard 2440x1220x12 mm
SKU: KSP05002440122012
12mm T · 1220×2440 mm · ~21.43 kg/sheet · ρ ≈ 600 kg/m³
Product family
KS Concrete Panel StandardSpecifications
Basic Specifications
- Grade
- AA GradePremium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.
- Color
- Full-piece veneer B GradeSingle-piece Grade B natural wood veneer appearance with minor color variation and small repairs. Provides a largely uniform natural timber look for commercial applications.Single-piece Grade B natural wood veneer appearance with minor color variation and small repairs. Provides a largely uniform natural timber look for commercial applications.
- Application
- FormworkConcrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.
- Back
- Natural wood colorUncoated natural hardwood back veneer displaying original wood grain and color. For applications where the back surface is visible or where a natural timber finish is preferred without additional film or coating.Uncoated natural hardwood back veneer displaying original wood grain and color. For applications where the back surface is visible or where a natural timber finish is preferred without additional film or coating.
- Back Color
- Natural wood colorUntreated natural hardwood back color showing the original grain pattern. Indicates no additional film, paint, or overlay coating is applied to the back surface.Untreated natural hardwood back color showing the original grain pattern. Indicates no additional film, paint, or overlay coating is applied to the back surface.
- Core Grade
- AA GradeCore veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.
- Face
- Full-piece veneer A GradeSingle-piece Grade A hardwood face veneer with no joints, splices, or finger-jointing. Provides a seamless, premium appearance for high-end furniture, architectural paneling, and decorative plywood where visual continuity is essential.Single-piece Grade A hardwood face veneer with no joints, splices, or finger-jointing. Provides a seamless, premium appearance for high-end furniture, architectural paneling, and decorative plywood where visual continuity is essential.
- Face Color
- Full-piece veneer B GradeSingle-piece Grade B face veneer showing natural wood character with minor color variation and small, well-executed repairs. Maintains a largely uniform appearance for commercial applications.Single-piece Grade B face veneer showing natural wood character with minor color variation and small, well-executed repairs. Maintains a largely uniform appearance for commercial applications.
- Glue
- WBP Melamine TopPremium Water Boil Proof melamine adhesive with top-tier formulation. Delivers superior bonding strength and moisture resistance approaching phenolic glue performance, with cleaner glue lines for quality-conscious applications.Premium Water Boil Proof melamine adhesive with top-tier formulation. Delivers superior bonding strength and moisture resistance approaching phenolic glue performance, with cleaner glue lines for quality-conscious applications.
- Moisture Content (%)
- 12
- Wood Species
- AcaciaAcacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.EucalyptusEucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.
Dimensions
- Cubic meter per piece
- 0.04
- Piece per Cubic Meter
- 27.99
- Piece per Square Meter
- 0.34
- Square Meter per Cubic meter
- 83.33
- Square meter per piece
- 2.98
- Thickness Tolerance (mm)
- According to EN315: +0.56 / -0.76
- Width & Length Tolerances (mm)
- 1mm per 1 meter
Mechanical Properties
- Bending Stiffness Across Grain (N/mm2)
- 2.5
- Bending Stiffness Along Grain (N/mm2)
- 3.5
- Bonding Strength (N/mm2)
- 1
- Mean Modulus of Elasticity (Across Grain) (N/mm2)
- 3000
- Mean Modulus of Elasticity (Along Grain) (N/mm2)
- 5000
- Min Bending Strength (Across Grain) (N/mm2)
- 30
- Min Bending Strength (Along Grain) (N/mm2)
- 50
- Shear Strength Across Grain (N/mm2)
- 2
- Shear Strength Along Grain (N/mm2)
- 2
Physical Properties
- Moisture Content (%)
- 12
- Thickness Swelling (%)
- 8
Chemical Properties
- Formaldehyde Emissions
- E1Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.
- Applicable Certifications
- EN13986 CE MarkingEuropean harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).FSC COC CertificationForest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.ISO9001 CertificationInternational quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.KS MarkKorean Standards (KS) certification for plywood and wood-based panels. Certifies compliance with KS F-series quality and performance standards required for construction products sold in the South Korean market.Korean Standards (KS) certification for plywood and wood-based panels. Certifies compliance with KS F-series quality and performance standards required for construction products sold in the South Korean market.
Packaging
- One Bundle Loading Standard (Pieces)
- 75
- Product Packaging
- 9 image(s)
- Standard Bundle Height (mm)
- 1000
- Standard Bundle Length (mm)
- 2440
- Standard Bundle Weight (kg)
- 1607.47
- Standard Bundle Width (mm)
- 1220
Frequently Asked Questions
What is KS Concrete Panel Standard 2440x1220x12 mm used for?
KS Concrete Panel Standard 2440x1220x12 mm is a plywood product manufactured by Vinawood, suitable for ks plywood applications. Contact our sales team for specific application guidance.
What are the dimensions of KS Concrete Panel Standard 2440x1220x12 mm?
KS Concrete Panel Standard 2440x1220x12 mm is available in 12mm T · 1220×2440 mm, weighing approximately 21.43 kg per sheet with a density of approximately 600 kg/m³.
What certifications does KS Concrete Panel Standard 2440x1220x12 mm have?
Vinawood maintains compliance with international standards including EPA TSCA Title VI (CARB P2), FSC Chain of Custody, CE marking, and EUDR traceability. Specific certification documents are provided with each shipment. Contact our team for the latest compliance details.
How can I order KS Concrete Panel Standard 2440x1220x12 mm?
You can request a quotation by contacting our sales team through the inquiry form on this page, or reach out directly via our contact page. We provide competitive FOB pricing, factory-direct from Vietnam.
Can I get samples of KS Concrete Panel Standard 2440x1220x12 mm?
Yes, Vinawood provides product samples upon request. Contact our sales team with your specifications and we will arrange sample delivery to help you evaluate the product before placing a bulk order.
