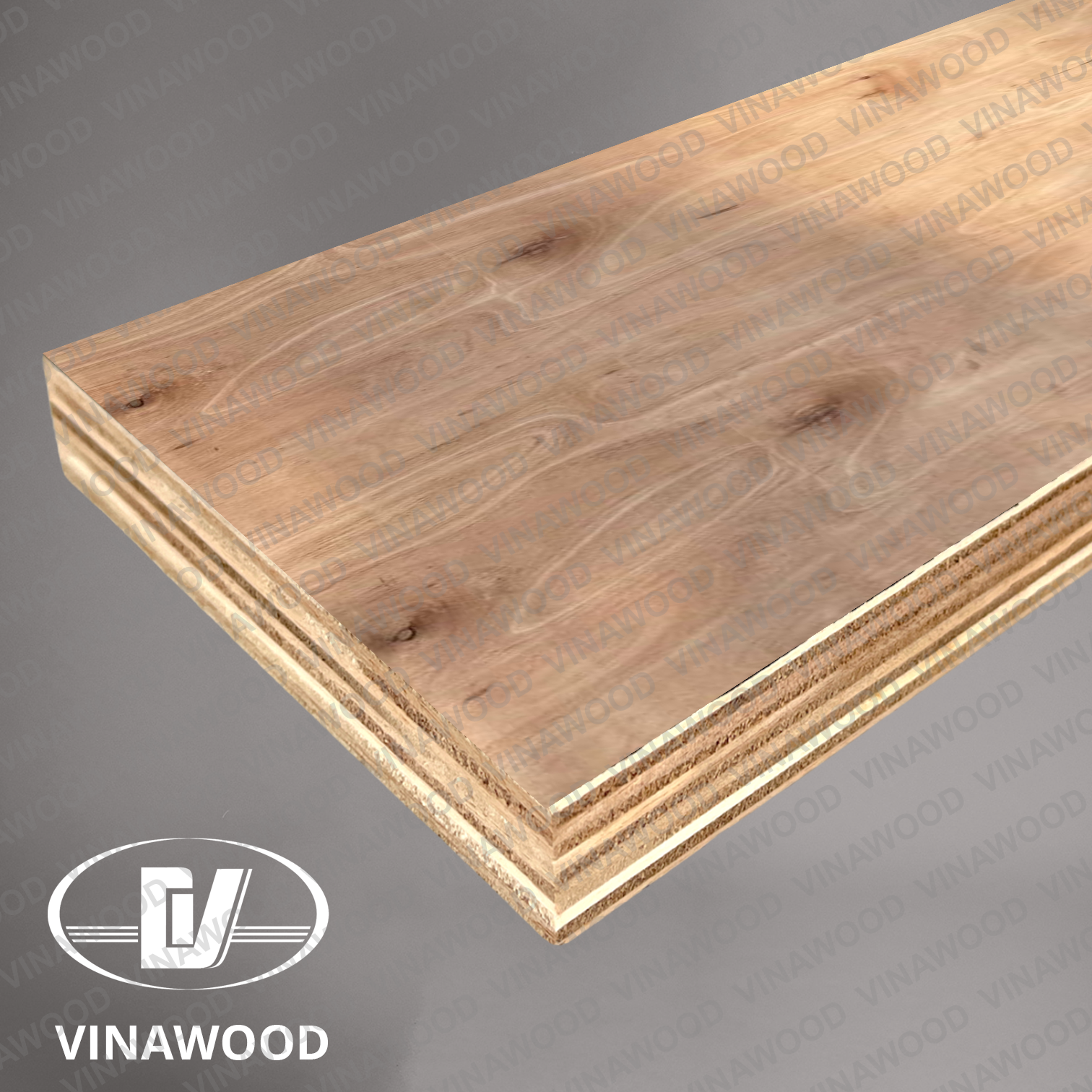

MPP Panel Eco 4x8x11/16
SKU: MPP100008041116
18mm T · 1220×2440 mm · ~32.15 kg/sheet · ρ ≈ 600 kg/m³
Vinawood's MPP Panel Eco is a rugged and budget-friendly plywood panel, perfect for tackling your toughest temporary outdoor construction projects where moisture exposure is limited. Crafted with a medium-density hardwood core, the MPP Panel Eco delivers reliable strength and stability for diverse tasks.
Product family
MPP Panel EcoSpecifications
Basic Specifications
- Grade
- AA GradePremium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.
- Color
- Natural wood colorNatural hardwood color displaying original wood grain and tone without films, overlays, or coatings applied to the surface.Natural hardwood color displaying original wood grain and tone without films, overlays, or coatings applied to the surface.
- Application
- Multi-purposeGeneral-purpose plywood suitable for a wide range of construction, industrial, and commercial applications including interior fit-out, temporary structures, hoarding, and general building where specialized overlays are not required.General-purpose plywood suitable for a wide range of construction, industrial, and commercial applications including interior fit-out, temporary structures, hoarding, and general building where specialized overlays are not required.
- Back
- C Grade VeneerGrade C natural wood back veneer. Allows visible knots, color variation, patches, and minor defects per grading standards. Suitable for concealed or structural applications where back appearance is secondary.Grade C natural wood back veneer. Allows visible knots, color variation, patches, and minor defects per grading standards. Suitable for concealed or structural applications where back appearance is secondary.
- Back Color
- Natural wood colorUntreated natural hardwood back color showing the original grain pattern. Indicates no additional film, paint, or overlay coating is applied to the back surface.Untreated natural hardwood back color showing the original grain pattern. Indicates no additional film, paint, or overlay coating is applied to the back surface.
- Core Grade
- AA GradeCore veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.
- Face
- D Grade VeneerEconomy-grade D natural wood veneer. Permits knots, splits, and surface defects per industry grading standards. Used for non-visible structural faces in packing, construction, and economy plywood where appearance is secondary to function.Economy-grade D natural wood veneer. Permits knots, splits, and surface defects per industry grading standards. Used for non-visible structural faces in packing, construction, and economy plywood where appearance is secondary to function.
- Face Color
- Natural wood colorNatural hardwood face showing original wood grain, color, and tone. Ideal for applications where a genuine timber appearance is desired without films, overlays, or coatings.Natural hardwood face showing original wood grain, color, and tone. Ideal for applications where a genuine timber appearance is desired without films, overlays, or coatings.
- Glue
- Moisture Exposure GlueGeneral-purpose adhesive providing basic protection against humidity and intermittent moisture exposure. Suitable for light-duty exterior and semi-exposed applications where full WBP rating is not required.General-purpose adhesive providing basic protection against humidity and intermittent moisture exposure. Suitable for light-duty exterior and semi-exposed applications where full WBP rating is not required.
- Moisture Content (%)
- 12
- Wood Species
- AcaciaAcacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.EucalyptusEucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.
Dimensions
- Cubic meter per piece
- 0.05
- Piece per Cubic Meter
- 18.66
- Piece per Square Meter
- 0.34
- Square Meter per Cubic meter
- 55.56
- Square meter per piece
- 2.98
- Thickness Tolerance (mm)
- According to EN315: +1.34 / -0.94
- Width & Length Tolerances (mm)
- 1mm per 1 meter
Weight
- Weight per piece (lbs)
- 71
Physical Properties
- Moisture Content (%)
- 12
- Thickness Swelling (%)
- 10
Chemical Properties
- Formaldehyde Emissions
- E2Formaldehyde emission class E2 (≤5.0 mg/L). Suitable for exterior, well-ventilated, or short-term applications such as construction formwork where panels are not used in enclosed living spaces.Formaldehyde emission class E2 (≤5.0 mg/L). Suitable for exterior, well-ventilated, or short-term applications such as construction formwork where panels are not used in enclosed living spaces.
- Applicable Certifications
- ISO9001 CertificationInternational quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.EN13986 CE MarkingEuropean harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).FSC COC CertificationForest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.
Packaging
- One Bundle Loading Standard (Pieces)
- 50
- Product Packaging
- 9 image(s)
- Standard bundle height (ft)
- 3.3
- Standard Bundle Height (mm)
- 1000
- Standard bundle length (ft)
- 8
- Standard Bundle Length (mm)
- 2440
- Standard Bundle Weight (kg)
- 1607.47
- Standard bundle width (ft)
- 4
- Standard Bundle Width (mm)
- 1220
- Weight per bundle (lbs)
- 3540
Frequently Asked Questions
What is MPP Panel Eco 4x8x11/16 used for?
MPP Panel Eco 4x8x11/16 is a plywood product manufactured by Vinawood, suitable for multi-purpose plywood applications. Contact our sales team for specific application guidance.
What are the dimensions of MPP Panel Eco 4x8x11/16?
MPP Panel Eco 4x8x11/16 is available in 18mm T · 1220×2440 mm, weighing approximately 32.15 kg per sheet with a density of approximately 600 kg/m³.
What certifications does MPP Panel Eco 4x8x11/16 have?
Vinawood maintains compliance with international standards including EPA TSCA Title VI (CARB P2), FSC Chain of Custody, CE marking, and EUDR traceability. Specific certification documents are provided with each shipment. Contact our team for the latest compliance details.
How can I order MPP Panel Eco 4x8x11/16?
You can request a quotation by contacting our sales team through the inquiry form on this page, or reach out directly via our contact page. We provide competitive FOB pricing, factory-direct from Vietnam.
Can I get samples of MPP Panel Eco 4x8x11/16?
Yes, Vinawood provides product samples upon request. Contact our sales team with your specifications and we will arrange sample delivery to help you evaluate the product before placing a bulk order.
