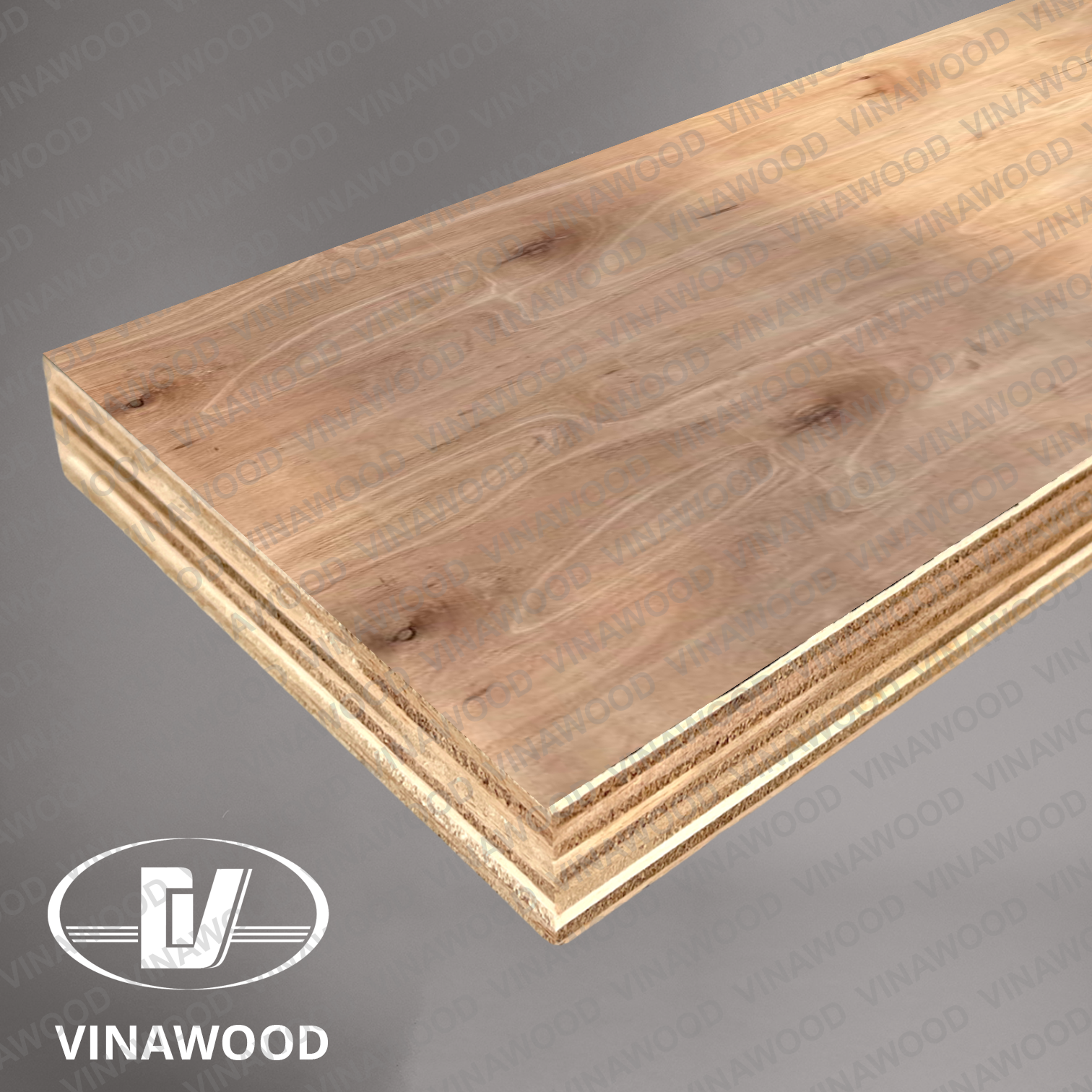

MPP Panel Standard 4x8x11/16
SKU: MPP200008041116
18mm T · 1220×2440 mm · ~32.15 kg/sheet · ρ ≈ 600 kg/m³
Product family
MPP Panel StandardSpecifications
Basic Specifications
- Grade
Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.
- Color
Natural hardwood color displaying original wood grain and tone without films, overlays, or coatings applied to the surface.
- Application
General-purpose plywood suitable for a wide range of construction, industrial, and commercial applications including interior fit-out, temporary structures, hoarding, and general building where specialized overlays are not required.
- Back
Grade C natural wood back veneer. Allows visible knots, color variation, patches, and minor defects per grading standards. Suitable for concealed or structural applications where back appearance is secondary.
- Back Color
Untreated natural hardwood back color showing the original grain pattern. Indicates no additional film, paint, or overlay coating is applied to the back surface.
- Core Grade
Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.
- Face
Economy-grade D natural wood veneer. Permits knots, splits, and surface defects per industry grading standards. Used for non-visible structural faces in packing, construction, and economy plywood where appearance is secondary to function.
- Face Color
Natural hardwood face showing original wood grain, color, and tone. Ideal for applications where a genuine timber appearance is desired without films, overlays, or coatings.
- Glue
Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.
- Moisture Content (%)
- 12
- Wood Species
Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.; Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.
Dimensions
- Cubic meter per piece
- 0.05
- Piece per Cubic Meter
- 18.66
- Piece per Square Meter
- 0.34
- Square Meter per Cubic meter
- 55.56
- Square meter per piece
- 2.98
- Thickness Tolerance (mm)
- According to EN315: +1.34 / -0.94
- Width & Length Tolerances (mm)
- 1mm per 1 meter
Weight
- Weight per piece (lbs)
- 71
Properties
Physical Properties
- Moisture Content (%)
- 12
- Thickness Swelling (%)
- 10
Chemical Properties
- Formaldehyde Emissions
Compliant with the Toxic Substances Control Act Title IV formaldehyde emission standards. Meets US federal requirements for composite wood products ensuring safe formaldehyde levels for end-use applications.
Compliance
- Applicable Certifications
International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.; European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).; Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.
Logistics
Packaging
- One Bundle Loading Standard (Pieces)
- 50
- Product Packaging
- 9 image(s)
- Standard bundle height (ft)
- 3.3
- Standard Bundle Height (mm)
- 1000
- Standard bundle length (ft)
- 8
- Standard Bundle Length (mm)
- 2440
- Standard Bundle Weight (kg)
- 1607.47
- Standard bundle width (ft)
- 4
- Standard Bundle Width (mm)
- 1220
- Weight per bundle (lbs)
- 3540
