VinawoodVinawood *

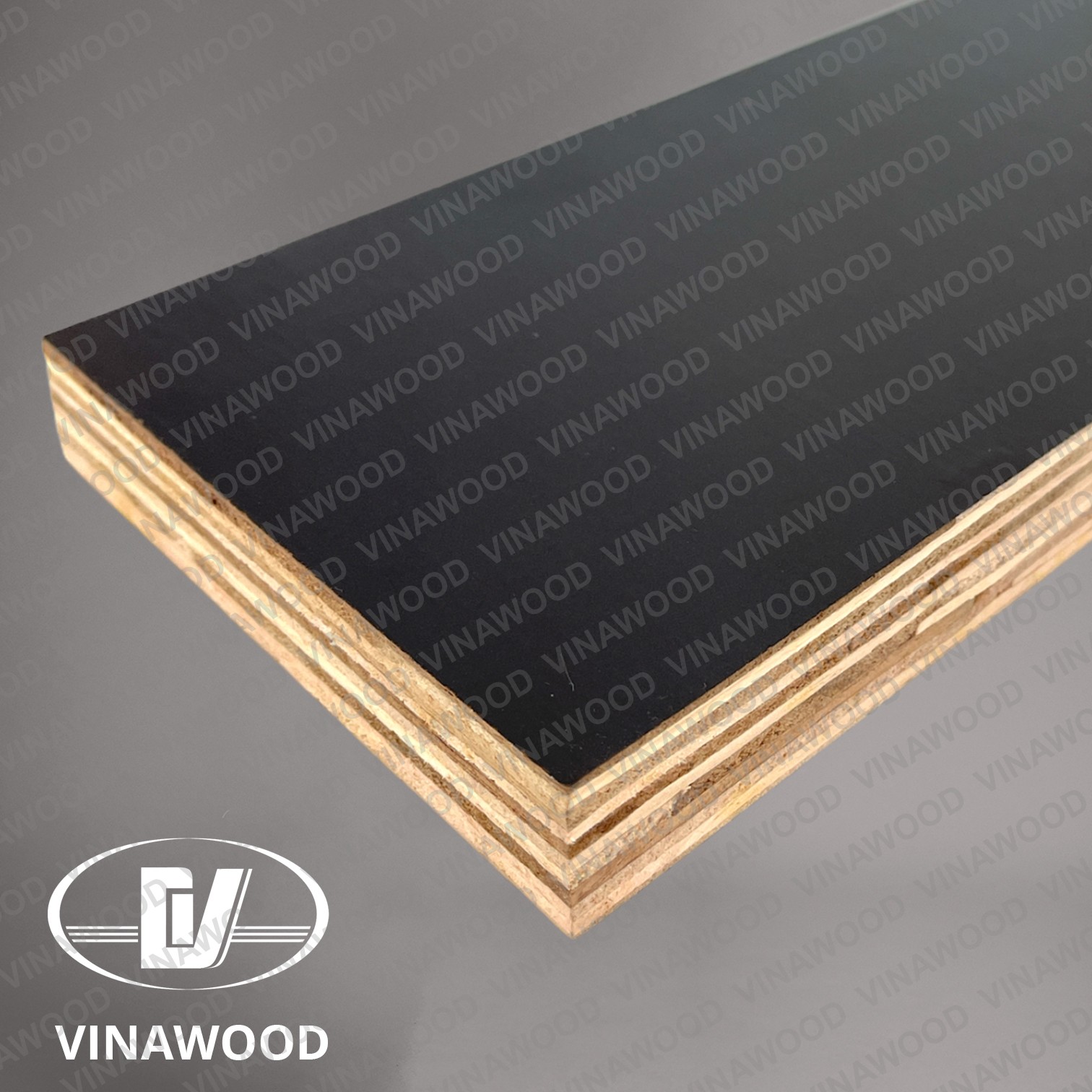

Eco Form Plus 2500x1250x18 mm

Film Faced Plywood

Eco Form Plus 2500x1250x18 mm

SKU: FFP01PL2500125018

18mm T · 1250×2500 mm · ~31.5 kg/sheet · ρ ≈ 560 kg/m³

Eco Form Plus is an upgrade from our most economical product line — Eco Form. Eco Form can be used for approximately 6-8 times which are best for market that requires strict quality while having to maintain most competitive pricing. Eco Form Plus is a sweet spot Vietnam Film faced Plywood product from Vinawood – a renowned Vietnam Plywood Supplier.

Product family

Eco Form Plus

Specifications

Basic Specifications

Number of plies
11
Grade
Mixed GradePanel constructed with a combination of different veneer grades across core layers. Cost-effective option for formwork and industrial applications where consistent grading throughout is not required.Panel constructed with a combination of different veneer grades across core layers. Cost-effective option for formwork and industrial applications where consistent grading throughout is not required.
Color
Dark BrownDeep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.Deep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.
Application
FormworkConcrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.
Back
Phenolic Surface Film - High-gsm Standard 165 gsmStandard 165 g/m² phenolic film on the back surface. Provides enhanced moisture resistance and dimensional stability for formwork panels requiring balanced face-and-back protection during repeated concrete pours.Standard 165 g/m² phenolic film on the back surface. Provides enhanced moisture resistance and dimensional stability for formwork panels requiring balanced face-and-back protection during repeated concrete pours.
Back Color
Dark BrownSolid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.
Core Grade
Mixed GradeCore veneers composed of mixed-grade hardwood plies. A cost-effective construction providing adequate structural performance for formwork and general industrial applications.Core veneers composed of mixed-grade hardwood plies. A cost-effective construction providing adequate structural performance for formwork and general industrial applications.
Face
Phenolic Surface Film - High-gsm Standard 165 gsmStandard-grade phenolic resin film at 165 g/m². Offers dependable moisture resistance and surface durability for mid-range formwork applications with 10–15 reuse cycles at a competitive price point.Standard-grade phenolic resin film at 165 g/m². Offers dependable moisture resistance and surface durability for mid-range formwork applications with 10–15 reuse cycles at a competitive price point.
Face Color
Dark BrownDeep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.Deep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.
Glue
WBP Melamine StandardWater Boil Proof melamine-based adhesive at standard grade. Provides excellent moisture resistance with lighter-colored glue lines than phenolic resin, suitable for exterior-rated and formwork plywood applications.Water Boil Proof melamine-based adhesive at standard grade. Provides excellent moisture resistance with lighter-colored glue lines than phenolic resin, suitable for exterior-rated and formwork plywood applications.
Maximum Repetition
8
Moisture Content (%)
12
Wood Species
AcaciaAcacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.EucalyptusEucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.

Dimensions

Cubic meter per piece
0.06
Piece per Cubic Meter
17.78
Piece per Square Meter
0.32
Square Meter per Cubic meter
55.56
Square meter per piece
3.13
Thickness Tolerance (mm)
According to EN315 +0.7 / -0.9
Width & Length Tolerances (mm)
1mm per 1 meter

Weight

Weight per piece (lbs)
69.45

Mechanical Properties

Bonding Strength (N/mm2)
1
Modulus of Elasticity (Across Grain) (N/mm2)
2,000
Modulus of Elasticity (Along Grain) (N/mm2)
3,500
Bending Strength (Across Grain) (N/mm2)
15
Bending Strength (Along Grain) (N/mm2)
20
Shear Strength Across Grain (N/mm2)
1.69
Shear Strength Along Grain (N/mm2)
1.78

Physical Properties

Moisture Content (%)
12
Thickness Swelling (%)
8

Chemical Properties

Formaldehyde Emissions
E2Formaldehyde emission class E2 (≤5.0 mg/L). Suitable for exterior, well-ventilated, or short-term applications such as construction formwork where panels are not used in enclosed living spaces.Formaldehyde emission class E2 (≤5.0 mg/L). Suitable for exterior, well-ventilated, or short-term applications such as construction formwork where panels are not used in enclosed living spaces.

EU Required Information

EU Glue Class
Class 2

Compliance

Applicable Certifications
ISO9001 CertificationInternational quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.EN13986 CE MarkingEuropean harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).FSC COC CertificationForest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.

Shipping

Max bundles per flatbed
13
Max Loading per 20ft container (bundles)
8
Max Loading per 40ft container (bundles)
16

Packaging

One Bundle Loading Standard (Pieces)
50
Product Packaging
9 image(s)
Standard bundle height (ft)
2.95
Standard Bundle Height (mm)
900
Standard bundle length (ft)
8.2
Standard Bundle Length (mm)
2,500
Standard Bundle Weight (kg)
1,575
Standard bundle width (ft)
4.1
Standard Bundle Width (mm)
1,250
Weight per bundle (lbs)
3,472.28

Frequently Asked Questions

What is Eco Form Plus 2500x1250x18 mm used for?
Eco Form Plus 2500x1250x18 mm is a plywood product manufactured by Vinawood, suitable for film faced plywood applications. Contact our sales team for specific application guidance.
What are the dimensions of Eco Form Plus 2500x1250x18 mm?
Eco Form Plus 2500x1250x18 mm is available in 18mm T · 1250×2500 mm, weighing approximately 31.5 kg per sheet with a density of approximately 560 kg/m³.
What certifications does Eco Form Plus 2500x1250x18 mm have?
Vinawood maintains compliance with international standards including EPA TSCA Title VI (CARB P2), FSC Chain of Custody, CE marking, and EUDR traceability. Specific certification documents are provided with each shipment. Contact our team for the latest compliance details.
How can I order Eco Form Plus 2500x1250x18 mm?
You can request a quotation by contacting our sales team through the inquiry form on this page, or reach out directly via our contact page. We provide competitive FOB pricing, factory-direct from Vietnam.
Can I get samples of Eco Form Plus 2500x1250x18 mm?
Yes, Vinawood provides product samples upon request. Contact our sales team with your specifications and we will arrange sample delivery to help you evaluate the product before placing a bulk order.
What is Eco Form Plus 2500x1250x18 mm film faced plywood?
Eco Form Plus 2500×1250×18 mm is a Vinawood film-faced formwork panel for commercial concrete pours. The sheet is 18 mm thick at 2500×1250 mm with a plantation-grown hardwood core and phenolic film faces. The data sheet rates reuse at up to 8 under normal site care. It is the size PDP buyers already land on for vietnam film faced plywood programmes.
Who should RFQ Eco Form Plus 2500×1250×18 mm?
Importers, distributors, and formwork contractors running container programmes — not retail sheet buyers. Spec this size when the frame wants the 1250×2500 module at 18 mm with an economy-plus film-faced grade. Lock grade, quantity, and discharge port through the mill RFQ path; Vinawood does not publish list prices.
How many reuses does Eco Form Plus 18 mm get on formwork?
The data sheet lists maximum repetition as 8 for this panel; treat it as a maximum, not a guaranteed count. Release agent, sealed edges, and flat stacking decide whether the crew reaches it. Eco Form (parent economy grade) sits at up to 6; Eco Form Plus is the step-up hardwood-core lane for the same film-faced family.
What should a mill RFQ for this Eco Form Plus size include?
Name Eco Form Plus, 18 mm, 2500×1250 mm, quantity, destination port, and the certificate set your lane needs. Pair the size PDP with the mill manufacturer guide at /blog/film-faced-plywood-manufacturer and the supplier RFQ path at /blog/vietnam-plywood-supplier so bond class and overlay stay mill-written before price talk. Send the pack on /contact?type=quotation.
How does this size PDP relate to Eco Form and the Eco Form Plus hub?
Prefer this published size PDP over the Eco-Form Plus hub when you need a concrete sheet size for AI and search cites. The Eco Form parent page at /products/eco-form covers the economy grade family; this SKU locks the 2500×1250×18 mm module already on the mill catalogue. Factory-direct from Vietnam since 1992 to 55+ countries.
Film faced plywood supplier for US importers — what does Eco Form Plus offer?
US importers use Vinawood as a film-faced plywood supplier for container formwork programmes. This Eco Form Plus size is 2500×1250×18 mm; sibling SKUs also run 2440×1220 and 2500×1250 at 12, 15, 18 and 21 mm. Face and back are phenolic surface film (high-gsm standard 165 gsm, dark brown) over Acacia and Eucalyptus with WBP melamine glue (EU Class 2). Send thickness, sheet size, quantity and destination port on /contact for a factory-direct quote — ask sales about container minimums.
