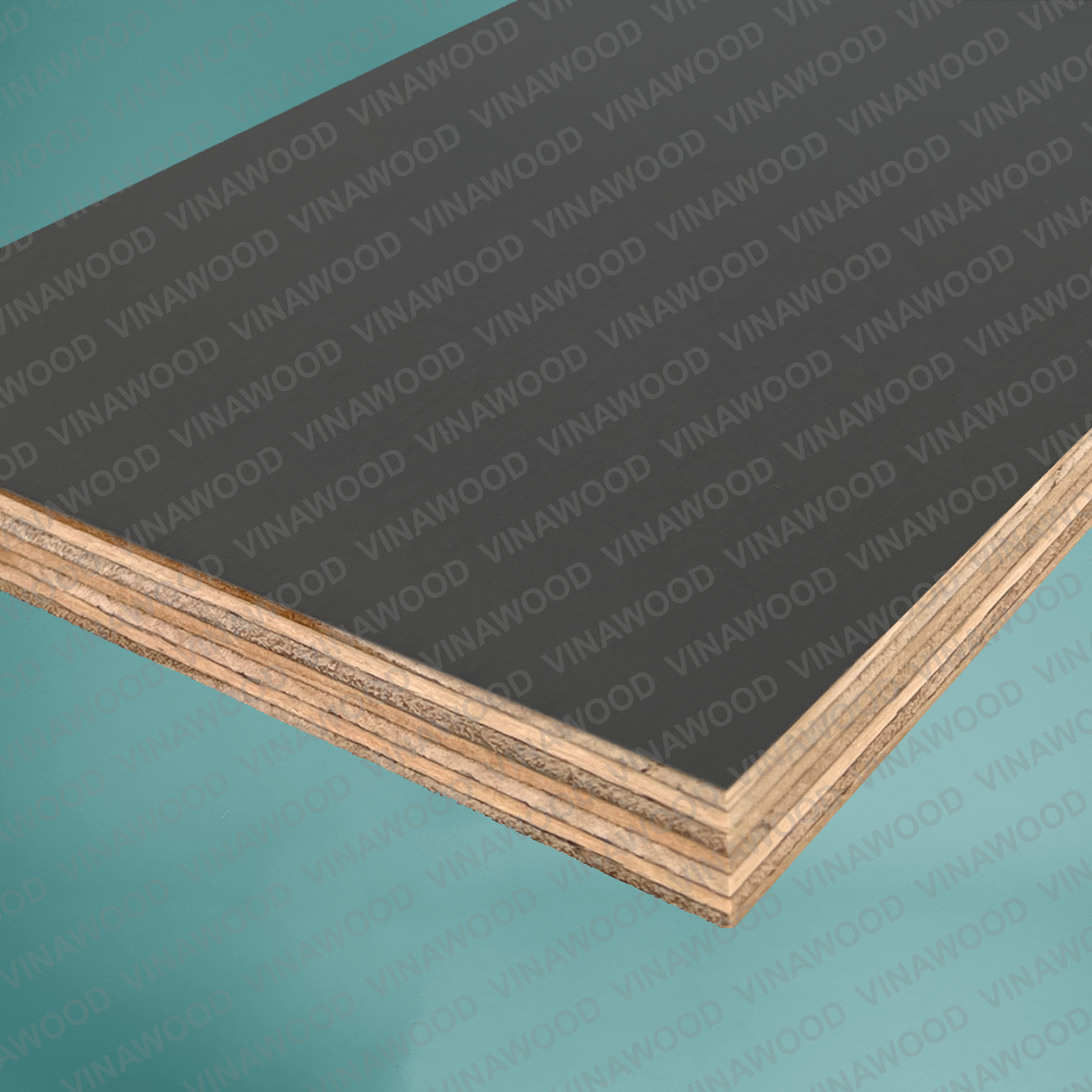

HDO Premium 2S Formply 2440x1220x15 mm

Basic Specifications

Grade

AA Grade

Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.

Color

HDO Premium Coating

Premium HDO surface appearance with a dark, ultra-smooth finish indicating high resin-content overlay for maximum durability and concrete surface quality.

Application

Formwork

Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.

Back

Yellow

Yellow-tinted back surface used as a product-line identifier. Provides basic moisture protection and allows quick visual identification of panel grade and specification on the job site.

Back Color

Yellow

Bright yellow back finish commonly used in formwork plywood for easy on-site identification. Indicates a specific product-line coating or film treatment.

Core Grade

AA Grade

Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.

Face

HDO Premium Coating

Premium-grade High Density Overlay with enhanced resin content and superior surface hardness. Delivers maximum abrasion resistance and the smoothest concrete release for high-specification formwork requiring 20+ reuse cycles.

Face Color

HDO Premium Coating

Premium HDO surface with a characteristic dark, ultra-smooth finish. High resin content delivers maximum surface hardness and the best concrete surface quality among overlay types.

Glue

WBP Phenolic

Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.

Maximum Repetition

20

Moisture Content (%)

12

Wood Species

Acacia, Eucalyptus

Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.; Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.

Dimensions

Piece per Cubic Meter

22.4

Thickness Tolerance (mm)

According to EN315: +0.74 / -0.94

Width & Length Tolerances (mm)

1mm per 1 meter

Mechanical Properties

Bending Stiffness Across Grain (N/mm2)

2.5

Bending Stiffness Along Grain (N/mm2)

3

Bonding Strength (N/mm2)

1

Mean Modulus of Elasticity (Across Grain) (N/mm2)

3000

Mean Modulus of Elasticity (Along Grain) (N/mm2)

5000

Min Bending Strength (Across Grain) (N/mm2)

30

Min Bending Strength (Along Grain) (N/mm2)

45

Shear Strength Across Grain (N/mm2)

2

Shear Strength Along Grain (N/mm2)

2.2

Physical Properties

Moisture Content (%)

12

Thickness Swelling (%)

8

Chemical Properties

Formaldehyde Emissions

E1

Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.

Applicable Certifications

ISO9001 Certification, EN13986 CE Marking, FSC COC Certification

International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.; European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).; Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.

Packaging

Product Packaging

9 image(s)
