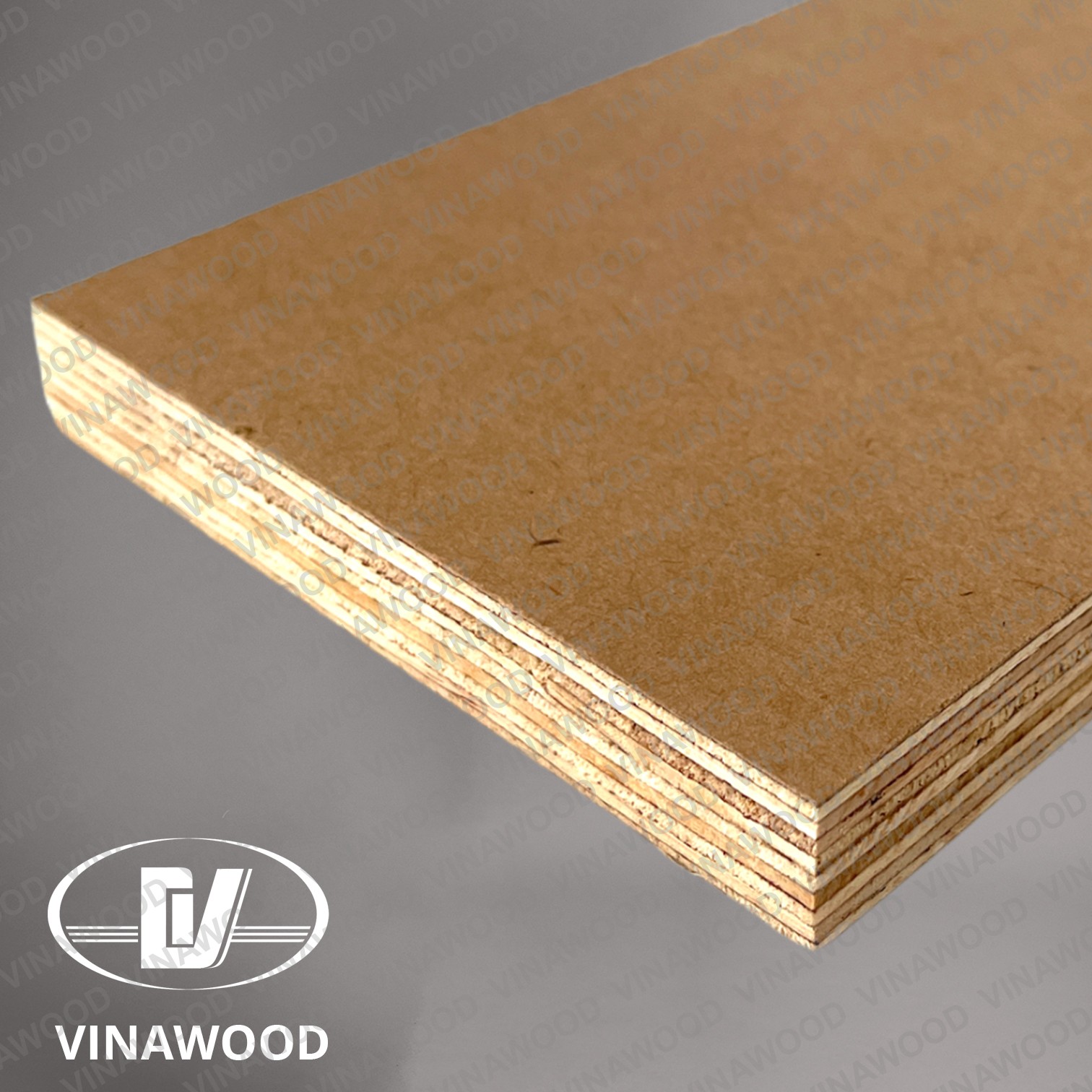

MDO 1SF Panel with Film backer - High Density - 2440x1220x21 mm

Basic Specifications

Grade

AA Grade

Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.

Color

Kraft Paper Color Purple

Purple-tinted kraft paper overlay color. Specialized coloring for product differentiation and market-specific identification while maintaining standard MDO surface properties.

Application

Formwork

Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.

Back

Phenolic Surface Film - Top grade 125 gsm

Top-quality 125 g/m² phenolic resin film on the back surface. Provides balanced moisture protection and dimensional stability to complement the face overlay, extending overall panel life in formwork applications.

Back Color

Dark Brown

Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.

Core Grade

AA Grade

Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.

Face

MDO 325 gsm

Medium Density Overlay at 325 g/m² kraft paper surface. Provides a smooth, paintable matte finish suitable for concrete forming, signage, and exterior use with good durability at a lower cost than HDO overlays. Typically 10+ reuse cycles.

Face Color

Kraft Paper Color Purple

Purple-tinted kraft paper overlay face. A specialized color for product differentiation and market-specific branding, maintaining the same smooth MDO surface properties as standard kraft overlays.

Glue

WBP Phenolic

Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.

Maximum Repetition

17

Moisture Content (%)

12

Wood Species

Acacia, Eucalyptus, Hevea

Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.; Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.; Hevea brasiliensis (Rubberwood) — lightweight plantation hardwood with clean, light-colored grain. Primarily used for interior furniture components, decorative panels, and economy plywood cores where moderate strength and a uniform appearance are valued.

Dimensions

Cubic meter per piece

0.06

Piece per Cubic Meter

16

Piece per Square Meter

0.34

Square Meter per Cubic meter

47.62

Square meter per piece

2.98

Thickness Tolerance (mm)

According to EN315: +0.83 / -1.03

Width & Length Tolerances (mm)

1mm per 1 meter

Mechanical Properties

Bending Stiffness Across Grain (N/mm2)

3.5

Bending Stiffness Along Grain (N/mm2)

4.5

Bonding Strength (N/mm2)

1

Mean Modulus of Elasticity (Across Grain) (N/mm2)

7000

Mean Modulus of Elasticity (Along Grain) (N/mm2)

9000

Min Bending Strength (Across Grain) (N/mm2)

35

Min Bending Strength (Along Grain) (N/mm2)

60

Shear Strength Across Grain (N/mm2)

2.5

Shear Strength Along Grain (N/mm2)

3

Physical Properties

Moisture Content (%)

12

Thickness Swelling (%)

8

Chemical Properties

Formaldehyde Emissions

E1

Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.

Applicable Certifications

ISO9001 Certification, EN13986 CE Marking, FSC COC Certification

International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.; European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).; Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.

Packaging

One Bundle Loading Standard (Pieces)

40

Standard Bundle Height (mm)

940

Standard Bundle Length (mm)

2440

Standard Bundle Weight (kg)

1575.32

Standard Bundle Width (mm)

1220
