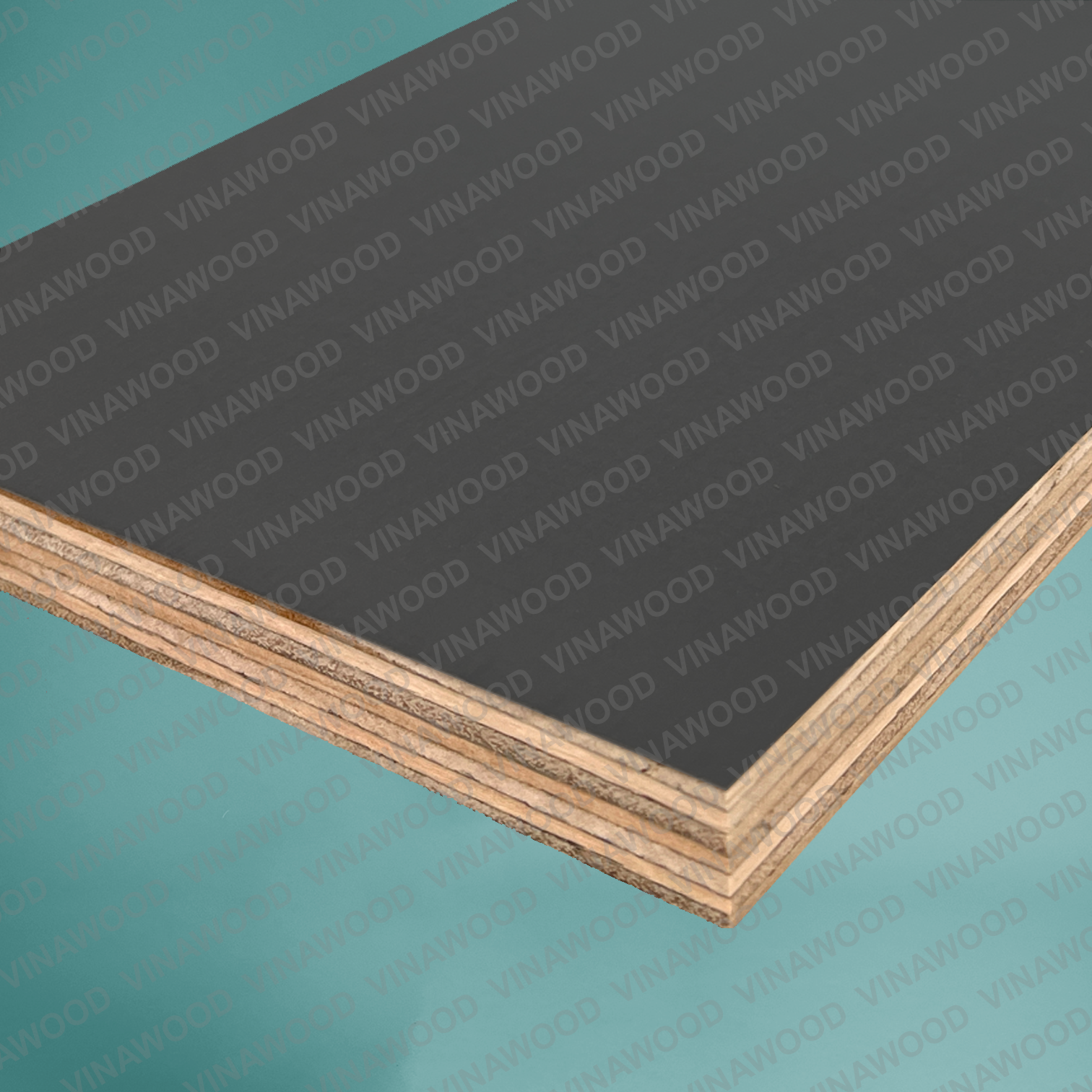

HDO Standard 1SF Formply 2440x1220x15 mm
SKU: HDO20002440122015
15mm T · 1220×2440 mm · ~26.79 kg/sheet · ρ ≈ 600 kg/m³
HDO Standard Formply 1SF is a high-quality, durable plywood product that is ideal for concrete forming. It is made from a superior wood core that is coated with a premium HDO coating on one side and a phenolic backer on the other side. HDO Standard Formply 1SF can be reused many times without losing its shape or surface quality.
Specifications
Basic Specifications
- Grade
- AA GradePremium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.
- Color
- Dark BrownDeep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.Deep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.
- Application
- FormworkConcrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.
- Back
- Phenolic Surface Film - Top grade 125 gsmTop-quality 125 g/m² phenolic resin film on the back surface. Provides balanced moisture protection and dimensional stability to complement the face overlay, extending overall panel life in formwork applications.Top-quality 125 g/m² phenolic resin film on the back surface. Provides balanced moisture protection and dimensional stability to complement the face overlay, extending overall panel life in formwork applications.
- Back Color
- Dark BrownSolid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.
- Core Grade
- AA GradeCore veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.
- Face
- HDO Premium CoatingPremium-grade High Density Overlay with enhanced resin content and superior surface hardness. Delivers maximum abrasion resistance and the smoothest concrete release for high-specification formwork requiring 20+ reuse cycles.Premium-grade High Density Overlay with enhanced resin content and superior surface hardness. Delivers maximum abrasion resistance and the smoothest concrete release for high-specification formwork requiring 20+ reuse cycles.
- Face Color
- Dark BrownDeep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.Deep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.
- Glue
- WBP PhenolicWater Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.
- Maximum Repetition
- 20
- Moisture Content (%)
- 12
- Wood Species
- AcaciaAcacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.EucalyptusEucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.
Dimensions
- Piece per Cubic Meter
- 22.4
- Thickness Tolerance (mm)
- According to EN315: +0.74 / -0.94
- Width & Length Tolerances (mm)
- 1mm per 1 meter
Mechanical Properties
- Bending Stiffness Across Grain (N/mm2)
- 2.5
- Bending Stiffness Along Grain (N/mm2)
- 3
- Bonding Strength (N/mm2)
- 1
- Mean Modulus of Elasticity (Across Grain) (N/mm2)
- 3000
- Mean Modulus of Elasticity (Along Grain) (N/mm2)
- 5000
- Min Bending Strength (Across Grain) (N/mm2)
- 30
- Min Bending Strength (Along Grain) (N/mm2)
- 45
- Shear Strength Across Grain (N/mm2)
- 2
- Shear Strength Along Grain (N/mm2)
- 2.2
Physical Properties
- Moisture Content (%)
- 12
- Thickness Swelling (%)
- 8
Chemical Properties
- Formaldehyde Emissions
- E1Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.
- Applicable Certifications
- ISO9001 CertificationInternational quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.EN13986 CE MarkingEuropean harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).FSC COC CertificationForest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.
Packaging
- Product Packaging
- 9 image(s)
Frequently Asked Questions
What is HDO Standard 1SF Formply 2440x1220x15 mm used for?
HDO Standard 1SF Formply 2440x1220x15 mm is a plywood product manufactured by Vinawood, suitable for hdo plywood applications. Contact our sales team for specific application guidance.
What are the dimensions of HDO Standard 1SF Formply 2440x1220x15 mm?
HDO Standard 1SF Formply 2440x1220x15 mm is available in 15mm T · 1220×2440 mm, weighing approximately 26.79 kg per sheet with a density of approximately 600 kg/m³.
What certifications does HDO Standard 1SF Formply 2440x1220x15 mm have?
Vinawood maintains compliance with international standards including EPA TSCA Title VI (CARB P2), FSC Chain of Custody, CE marking, and EUDR traceability. Specific certification documents are provided with each shipment. Contact our team for the latest compliance details.
How can I order HDO Standard 1SF Formply 2440x1220x15 mm?
You can request a quotation by contacting our sales team through the inquiry form on this page, or reach out directly via our contact page. We provide competitive FOB pricing, factory-direct from Vietnam.
Can I get samples of HDO Standard 1SF Formply 2440x1220x15 mm?
Yes, Vinawood provides product samples upon request. Contact our sales team with your specifications and we will arrange sample delivery to help you evaluate the product before placing a bulk order.
