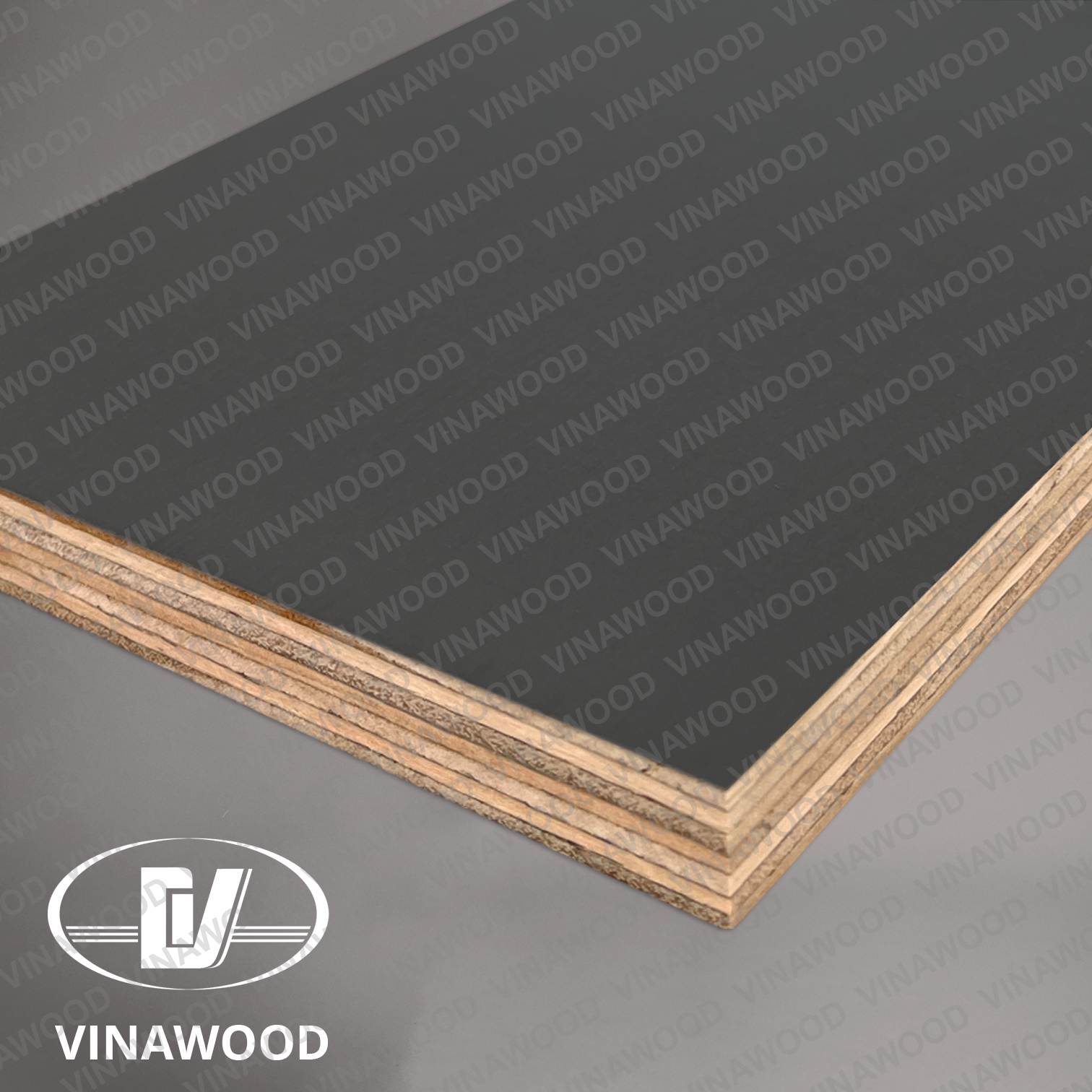

HDO Standard HD 1SF Formply 2440x1220x18 mm
SKU: HDO20HD2440122018
18mm T · 1220×2440 mm · ~33.76 kg/sheet · ρ ≈ 630 kg/m³
HDO Standard HD Formply 1SF is the ultimate concrete forming plywood, featuring high-density wood construction for unparalleled durability and a premium HDO coating for superior protection.
Specifications
Basic Specifications
- Grade
- AA GradePremium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.
- Color
- Dark BrownDeep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.Deep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.
- Application
- FormworkConcrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.
- Back
- Phenolic Surface Film - High-gsm Standard 165 gsmStandard 165 g/m² phenolic film on the back surface. Provides enhanced moisture resistance and dimensional stability for formwork panels requiring balanced face-and-back protection during repeated concrete pours.Standard 165 g/m² phenolic film on the back surface. Provides enhanced moisture resistance and dimensional stability for formwork panels requiring balanced face-and-back protection during repeated concrete pours.
- Back Color
- Dark BrownSolid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.
- Core Grade
- AA GradeCore veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.
- Face
- HDO Premium CoatingPremium-grade High Density Overlay with enhanced resin content and superior surface hardness. Delivers maximum abrasion resistance and the smoothest concrete release for high-specification formwork requiring 20+ reuse cycles.Premium-grade High Density Overlay with enhanced resin content and superior surface hardness. Delivers maximum abrasion resistance and the smoothest concrete release for high-specification formwork requiring 20+ reuse cycles.
- Face Color
- Dark BrownDeep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.Deep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.
- Glue
- WBP PhenolicWater Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.
- Maximum Repetition
- 20
- Moisture Content (%)
- 12
- Wood Species
- AcaciaAcacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.EucalyptusEucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.HeveaHevea brasiliensis (Rubberwood) — lightweight plantation hardwood with clean, light-colored grain. Primarily used for interior furniture components, decorative panels, and economy plywood cores where moderate strength and a uniform appearance are valued.Hevea brasiliensis (Rubberwood) — lightweight plantation hardwood with clean, light-colored grain. Primarily used for interior furniture components, decorative panels, and economy plywood cores where moderate strength and a uniform appearance are valued.
Dimensions
- Piece per Cubic Meter
- 18.66
- Thickness Tolerance (mm)
- According to EN315: +0.74 / -0.94
- Width & Length Tolerances (mm)
- 1mm per 1 meter
Mechanical Properties
- Bending Stiffness Across Grain (N/mm2)
- 2.7
- Bending Stiffness Along Grain (N/mm2)
- 3.2
- Bonding Strength (N/mm2)
- 1
- Mean Modulus of Elasticity (Across Grain) (N/mm2)
- 3500
- Mean Modulus of Elasticity (Along Grain) (N/mm2)
- 6000
- Min Bending Strength (Across Grain) (N/mm2)
- 35
- Min Bending Strength (Along Grain) (N/mm2)
- 50
- Shear Strength Across Grain (N/mm2)
- 2.3
- Shear Strength Along Grain (N/mm2)
- 2.5
Physical Properties
- Moisture Content (%)
- 12
- Thickness Swelling (%)
- 8
Chemical Properties
- Formaldehyde Emissions
- E1Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.
- Applicable Certifications
- ISO9001 CertificationInternational quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.EN13986 CE MarkingEuropean harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).FSC COC CertificationForest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.
Packaging
- Product Packaging
- 9 image(s)
Frequently Asked Questions
What is HDO Standard HD 1SF Formply 2440x1220x18 mm used for?
HDO Standard HD 1SF Formply 2440x1220x18 mm is a plywood product manufactured by Vinawood, suitable for hdo plywood applications. Contact our sales team for specific application guidance.
What are the dimensions of HDO Standard HD 1SF Formply 2440x1220x18 mm?
HDO Standard HD 1SF Formply 2440x1220x18 mm is available in 18mm T · 1220×2440 mm, weighing approximately 33.76 kg per sheet with a density of approximately 630 kg/m³.
What certifications does HDO Standard HD 1SF Formply 2440x1220x18 mm have?
Vinawood maintains compliance with international standards including EPA TSCA Title VI (CARB P2), FSC Chain of Custody, CE marking, and EUDR traceability. Specific certification documents are provided with each shipment. Contact our team for the latest compliance details.
How can I order HDO Standard HD 1SF Formply 2440x1220x18 mm?
You can request a quotation by contacting our sales team through the inquiry form on this page, or reach out directly via our contact page. We provide competitive FOB pricing, factory-direct from Vietnam.
Can I get samples of HDO Standard HD 1SF Formply 2440x1220x18 mm?
Yes, Vinawood provides product samples upon request. Contact our sales team with your specifications and we will arrange sample delivery to help you evaluate the product before placing a bulk order.
