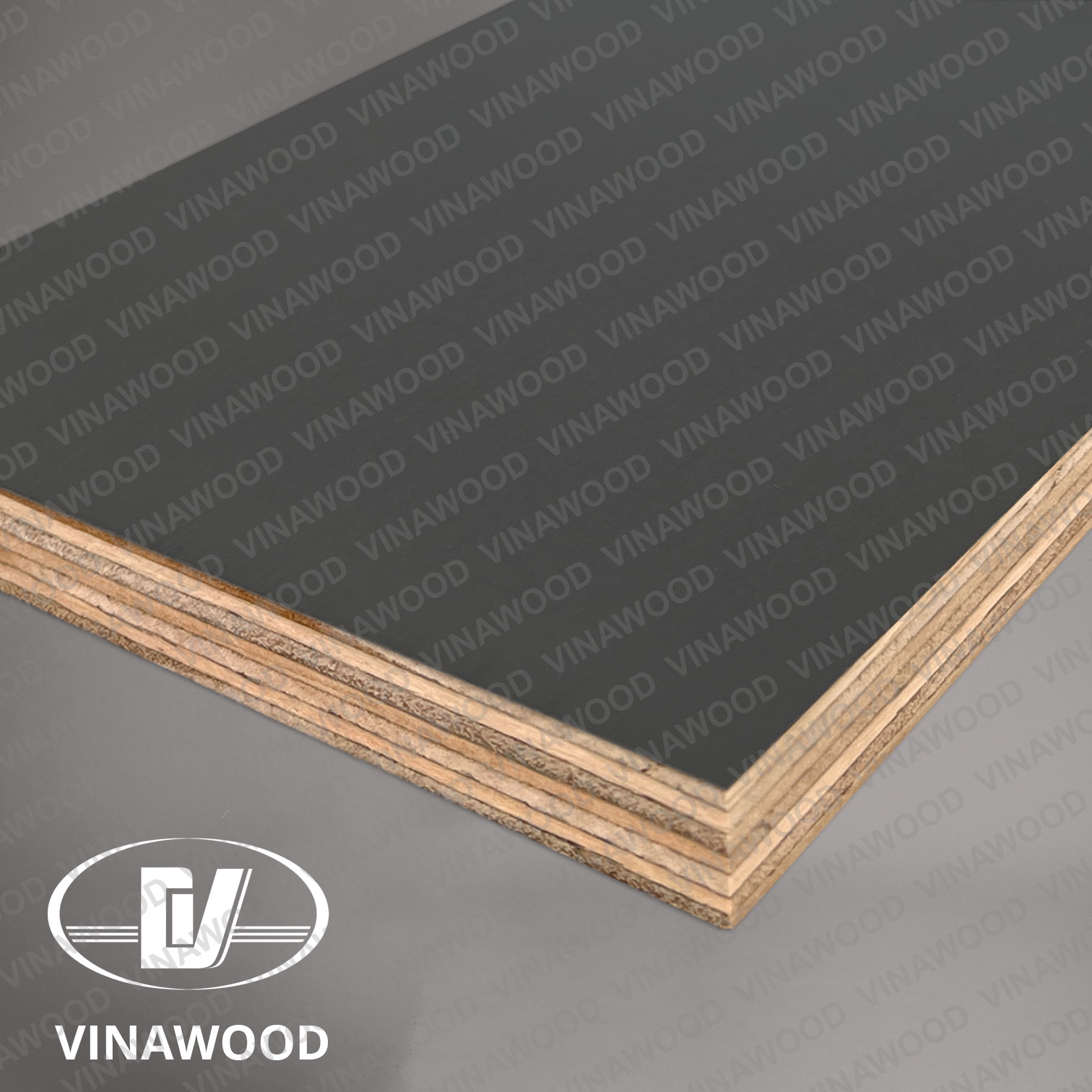

HDO Standard HD 1SF Formply 2440x1220x25 mm

Basic Specifications

Number of plies

15

Grade

AA Grade

Premium AA-grade panel with high-quality veneers throughout all layers. Minimal defects, uniform composition, and superior structural integrity for high-performance formwork and demanding construction applications.

Color

Dark Brown

Deep brown coloring characteristic of phenolic resin-treated or film-faced surfaces on formwork and industrial plywood panels.

Application

Formwork

Concrete forming and shuttering panels engineered to withstand repeated pours, chemical exposure, and high moisture on construction sites. Formwork plywood features overlay surfaces (phenolic, HDO, or MDO) for smooth concrete finishes and extended reuse life.

Back

Phenolic Surface Film - High-gsm Standard 165 gsm

Standard 165 g/m² phenolic film on the back surface. Provides enhanced moisture resistance and dimensional stability for formwork panels requiring balanced face-and-back protection during repeated concrete pours.

Back Color

Dark Brown

Solid dark brown back finish characteristic of phenolic resin-treated surfaces. Indicates good moisture resistance and chemical durability on the back panel.

Core Grade

AA Grade

Core veneers all graded AA with minimal defects, tight joints, and uniform density. Delivers superior internal bonding strength and consistent panel performance under structural load.

Face

HDO Premium Coating

Premium-grade High Density Overlay with enhanced resin content and superior surface hardness. Delivers maximum abrasion resistance and the smoothest concrete release for high-specification formwork requiring 20+ reuse cycles.

Face Color

Dark Brown

Deep brown face finish indicating phenolic film or high-density overlay treatment. The standard appearance for formwork and industrial-grade plywood panels.

Glue

WBP Phenolic

Water Boil Proof phenolic formaldehyde adhesive — the highest water-resistance glue standard. Withstands 72+ hours in boiling water without delamination. Required for marine, exterior, and heavy-duty formwork plywood.

Maximum Repetition

20

Moisture Content (%)

12

Wood Species

Acacia, Eucalyptus, Hevea

Acacia mangium — fast-growing tropical plantation hardwood with density of 580–600 kg/m³. Offers good structural strength, natural durability, and excellent cost-effectiveness. Widely used for plywood cores across Southeast Asian manufacturing.; Eucalyptus plantation hardwood with high density (650–750 kg/m³), tight grain, and superior structural rigidity. Excellent dimensional stability and moisture resistance — the closest tropical species to Baltic Birch in performance characteristics.; Hevea brasiliensis (Rubberwood) — lightweight plantation hardwood with clean, light-colored grain. Primarily used for interior furniture components, decorative panels, and economy plywood cores where moderate strength and a uniform appearance are valued.

Dimensions

Cubic meter per piece

0.0744

Piece per Cubic Meter

13.4372

Piece per Square Meter

0.3359

Square Meter per Cubic meter

40

Square meter per piece

2.9768

Thickness Tolerance (mm)

According to EN315: +0.74 / -0.94

Width & Length Tolerances (mm)

1mm per 1 meter

Weight

Weight per piece (lbs)

103.3636

Mechanical Properties

Bending Stiffness Across Grain (N/mm2)

2.6045

Bending Stiffness Along Grain (N/mm2)

3.1693

Bonding Strength (N/mm2)

1

Mean Modulus of Elasticity (Across Grain) (N/mm2)

3000

Mean Modulus of Elasticity (Along Grain) (N/mm2)

5000

Min Bending Strength (Across Grain) (N/mm2)

30

Min Bending Strength (Along Grain) (N/mm2)

45

Shear Strength Across Grain (N/mm2)

2.1022

Shear Strength Along Grain (N/mm2)

2.3776

Physical Properties

Moisture Content (%)

12

Thickness Swelling (%)

8

Chemical Properties

Formaldehyde Emissions

E1

Formaldehyde emission class E1 (≤1.5 mg/L). Low-emission standard widely accepted for indoor use in furniture, cabinetry, and residential construction across European, Asian, and most international markets.

Applicable Certifications

ISO9001 Certification, EN13986 CE Marking, FSC COC Certification

International quality management system standard. Certifies that manufacturing processes follow documented procedures for consistent product quality, continuous improvement, and customer satisfaction across all production batches.; European harmonised standard EN 13986 for wood-based panels in construction. CE Marking certifies compliance with EU requirements for structural performance, formaldehyde emissions, and fire reaction under the Construction Products Regulation (CPR).; Forest Stewardship Council Chain of Custody certification. Verifies the wood originates from responsibly managed forests and is tracked through every stage of the supply chain from forest to final product, supporting sustainable forestry practices.

Shipping

Max bundles per flatbed

12

Max Loading per 20ft container (bundles)

8

Max Loading per 40ft container (bundles)

15

Packaging

One Bundle Loading Standard (Pieces)

35

Product Packaging

9 image(s)

Standard bundle height (ft)

3.2958

Standard Bundle Height (mm)

875

Standard bundle length (ft)

8

Standard Bundle Length (mm)

2440

Standard Bundle Weight (kg)

1640.961

Standard bundle width (ft)

4

Standard Bundle Width (mm)

1220

Weight per bundle (lbs)

3617.6954
