Film Faced Plywood Manufacturing: How It's Made — From Log to Jobsite

Buyers who understand how film faced plywood is manufactured can evaluate suppliers with precision — separating mills that control every production variable from trading companies reselling whatever panels are cheapest this month. The manufacturing process directly determines how many concrete pours a panel will survive, how smooth the finished concrete surface will be, and whether the bond holds up after weeks of rain exposure on an open site.

This guide walks through the complete film faced plywood manufacturing process — from raw log to finished panel — and explains what to look for when evaluating a manufacturer. Written from the factory floor by Vinawood, a Vietnamese plywood manufacturer established in 1992, producing over 5,000 containers a year for export to 55+ countries.

Raw Material Selection: Veneer Species and Quality

Film faced plywood starts as logs — and the species of those logs determines the panel's density, bending strength, and moisture resistance before the factory even turns on a machine.

The dominant core species in Vietnamese manufacturing are eucalyptus and acacia, both fast-growing plantation hardwoods cultivated across northern and central Vietnam. These species produce panels with densities of 550–750 kg/m³, significantly higher than softwood alternatives (pine, spruce) at 450–550 kg/m³. Higher density translates directly to better bending strength and more reuse cycles in formwork applications. Some manufacturers also use poplar for lightweight interior grades or birch for premium European and furniture markets.

Logs arrive at the mill yard and go through debarking, soaking (or steaming to soften the wood for cleaner peeling), and metal detection to protect the peeling lathe blades. After peeling, veneers are graded into face, back, and core categories based on the number and size of knots, cracks, and colour consistency. A-grade veneer goes to faces; C-grade or patched veneer goes into the core. This grading step is invisible to the buyer but determines the panel's structural performance. For more on how the finished product performs, see our guide to phenolic plywood properties.

Veneer Peeling and Drying

Rotary peeling is the core conversion step. A prepared log is mounted on a lathe and spun against a fixed blade, producing a continuous sheet of veneer — much like unrolling a paper towel. Target veneer thickness ranges from 1.5 to 2.2 mm depending on the panel specification and total ply count.

The peeled veneer exits the lathe at 40–60% moisture content — far too wet to bond. Roller dryers reduce this to 6–10%, the range where adhesives can form a durable bond without trapping moisture inside the panel. Drying temperature and speed must be calibrated to the species: eucalyptus dries faster than acacia, and over-drying produces brittle veneer that cracks during lay-up.

After drying, every sheet is quality-sorted. Inspectors grade for cracks, knots, thickness consistency, and moisture content. Core veneers with small gaps or defects are patched — a normal manufacturing step that fills veneer imperfections to ensure structural continuity across the panel. These core gaps are inherent to veneer-core plywood across all manufacturers worldwide and fall within international grading tolerances.

Glue Mixing and Application

The adhesive system is the single most important quality variable in film faced plywood manufacturing. Two main types are used:

WBP phenolic resin (EN 636-3 / Class 3) — the premium bond. Phenolic adhesive cures into a thermoset bond that withstands boiling water, prolonged outdoor exposure, and repeated wet-dry cycling. Only panels bonded with WBP phenolic qualify for EN 636-3 (Class 3) classification. Vinawood's Pro Form and the entire HDO range use this adhesive.

WBP melamine resin (EN 636-2 / Class 2) — the standard formwork bond. Melamine adhesive passes the EN 314 boil test and handles humid conditions and protected exterior use. It costs less than phenolic and suits most formwork projects with moderate exposure. Form Basic and Form Extra use this adhesive system.

Glue is mixed in batches with precise resin-to-hardener ratios and applied to veneer surfaces using roller spreaders at controlled spread rates (typically 160–200 g/m² per glue line). Consistency in glue spread directly affects bond strength uniformity across the panel — uneven application creates weak spots that show up as delamination under site conditions.

All adhesive formulations must comply with formaldehyde emission standards — E1 limits under European regulations and CARB Phase 2 / EPA TSCA Title VI for US market compliance. See the HDO vs MDO overlay comparison for how adhesive choice affects overlay panel performance.

Lay-Up and Cold Pressing

Lay-up is where the cross-laminated structure of plywood is assembled. Veneer sheets are stacked with alternating grain directions — each ply oriented 90° to the one below it. This cross-lamination is what gives plywood its dimensional stability and resistance to splitting along the grain, outperforming solid wood panels of equivalent thickness.

Panel thickness determines ply count. An 18 mm formwork panel typically uses 9, 11, or 13 plies depending on veneer thickness and target mechanical properties. Odd-ply construction ensures balanced grain orientation on both faces, preventing warping.

After lay-up, the assembled panel enters a cold pre-press at approximately 1 MPa for 8–10 minutes. This step compresses the stack, removes trapped air between veneers, and initiates the adhesive's initial tack — holding everything in alignment before the critical hot-pressing stage. Quality inspectors verify ply count, grain orientation, and alignment at this stage.

Hot Pressing — The Critical Manufacturing Step

Hot pressing is where the adhesive cures into a permanent bond and the panel achieves its final density and mechanical properties. The parameters are precise:

Temperature: 120–135°C for phenolic adhesive; 110–120°C for melamine. Phenolic requires higher temperatures because the resin undergoes a full thermosetting polymerisation reaction — once cured, the bond cannot be reversed by heat or moisture.

Pressure: 1.2–1.5 MPa, applied uniformly across the panel face. Insufficient pressure creates voids in the glue line; excessive pressure squeezes adhesive out and starves the bond.

Press time: Approximately 1 minute per millimetre of panel thickness. An 18 mm panel spends roughly 18 minutes under heat and pressure. Shorter press times risk incomplete cure; longer times waste energy and reduce throughput.

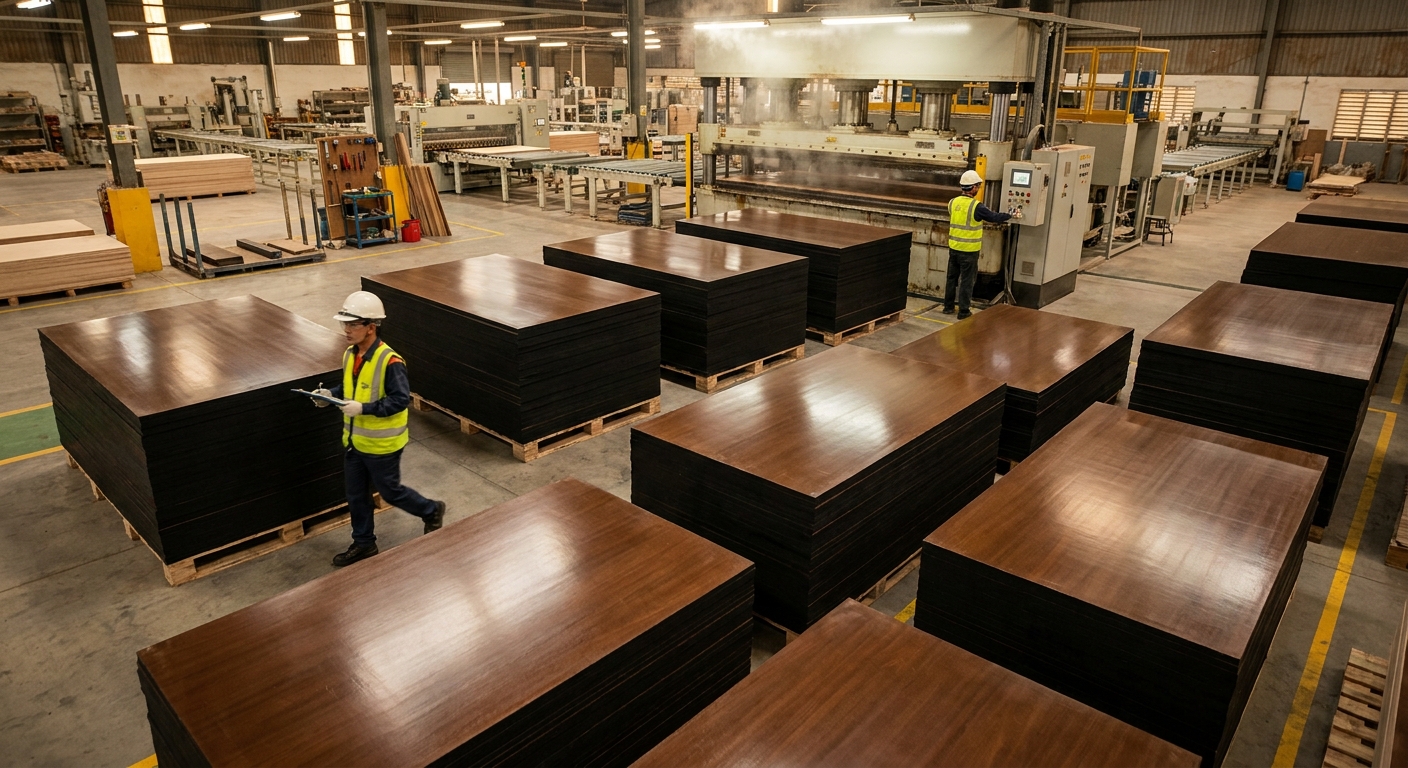

Modern factories use multi-daylight presses — machines that press 15 to 30 panels simultaneously in stacked platens. This is where production capacity scales: a factory with three multi-daylight presses running two shifts can produce thousands of panels per day. Press parameters are logged digitally for every batch, providing traceability that quality-conscious buyers should ask to see.

Phenolic Film Application and Overlay Pressing

The defining feature of film faced plywood is the phenolic film overlay — a thermoset resin-impregnated paper applied to one or both faces of the panel. This film is what creates the smooth, water-resistant casting surface that releases cleanly from cured concrete.

Film is available in two standard weights: 120 g/m² (standard, suitable for up to 10–15 reuses depending on the panel) and 220 g/m² (premium, extending reuse life to up to 20 or more cycles). Colour options include brown (the industry standard) and black. Surface textures range from smooth (for architectural fair-face concrete) to wire-mesh (for anti-slip applications).

The film is positioned on the face and back veneers before the final hot press cycle. During pressing, the phenolic resin in the film melts and bonds permanently to the veneer surface — the film becomes part of the panel, not a separate layer that can peel off. At the edge, the film is virtually invisible — a paper-thin surface coating, not a visible separate ply. Browse Vinawood's full film-faced plywood range to compare film weight options across products.

Trimming, Edge Sealing, and Quality Control

After pressing, panels are trimmed to their final dimensions. Standard sizes include 1220×2440 mm (imperial, for US and Asian markets) and 1250×2500 mm (metric, for European markets). Custom sizes are available on container-load orders.

Edge sealing is a critical finishing step that many cheap manufacturers skip. Waterproof acrylic or phenolic paint is applied to all four edges, sealing the exposed veneer layers against moisture ingress. Without edge sealing, water enters through the cut edges — the most vulnerable point on any plywood panel — and accelerates delamination and swelling. When you see a formwork panel on site with swollen edges after only a few pours, missing or inadequate edge sealing is usually the cause.

Quality control checks on the finished panel include thickness tolerance verification (EN 315 allows +0.74/−0.94 mm on an 18 mm panel), bond strength testing via the EN 314 boil test, surface smoothness measurement, and moisture content verification. Third-party certifications — CE marking under EN 13986, FSC Chain of Custody for sustainable sourcing, and ISO 9001 for quality management systems — provide independent verification of these checks.

How to Evaluate a Film Faced Plywood Manufacturer

Understanding the manufacturing process gives you a checklist for supplier evaluation:

Factory certifications: ISO 9001 (quality management), FSC-COC (sustainable sourcing traceability), CE marking capability (European construction product compliance), CARB P2 / EPA TSCA Title VI (US formaldehyde compliance).

Key questions to ask: What adhesive system do you use — phenolic or melamine? What veneer species make up the core? What film weight options are available? What are your press specifications (temperature, pressure, time)? Can you provide batch-level QC records?

Red flags: Inconsistent veneer grading across sample panels. No third-party bond-test reports. No edge sealing on finished panels. Reluctance to arrange factory visits or video walk-throughs. Demands for 100% prepayment without letter-of-credit options.

For large-volume orders, factory visits and independent sample testing (EN 314 boil test, thickness measurement across the sheet, moisture content check) are standard due diligence. See our detailed buying plywood from Vietnam guide for the complete procurement checklist, and the film-faced plywood buying guide for product-specific selection criteria.

Vinawood's Manufacturing Process and Capabilities

Vinawood has been manufacturing plywood in Vietnam since 1992 — over 30 years of continuous production from facilities in Hanoi and Bac Ninh. The factory operates multi-daylight hot presses, automated veneer dryers, and in-house bond-testing labs with batch-level traceability on every panel produced.

Production capacity runs to 5,000+ containers per year, shipped to 55+ countries across North America, Europe, the Middle East, Australia, Korea, Japan, India, and beyond. Certifications include ISO 9001, FSC Chain of Custody, PEFC, CE marking under EN 13986, EPA TSCA Title VI / CARB P2, KS Mark for Korea, UKCA for the UK, BIS for India, and EPD for green building credit programmes.

The formwork product range includes Form Basic (EN 636-2, WBP melamine, up to 10 reuses) for standard commercial projects, Form Extra (EN 636-2, WBP melamine, up to 15 reuses) for extended-cycle work, and Pro Form (EN 636-3, WBP phenolic, up to 20 reuses) as the premium panel for demanding specifications. For North American formwork buyers, the HDO range — including HDO Premium 2S Formply and HDO Basic 1SF — is manufactured to US plyform specifications with WBP phenolic adhesive.

Direct factory pricing, no trading-company intermediary, full export documentation, and sample panels shipped on request. Contact Vinawood for a manufacturing-specification sheet or project-specific RFQ.
