How much weight can plywood hold? Plywood load capacity chart
Wondering how much weight plywood can hold? The load capacity of plywood depends on its thickness, grade, and support structure. Whether you're using it for flooring, shelving, or structural applications, understanding its strength is crucial. Check out our plywood load capacity chart to see how…
Plywood load capacity comes down to three measurable variables. Panel thickness. Span between supports. Direction of the face grain relative to the load. A 3/4-inch BC-grade panel spanning 16 inches between joists carries roughly 50 pounds per square foot in flooring use. Drop the thickness to 1/2 inch on the same span — about 30 psf. Push the span out to 24 inches with the same 3/4-inch panel — capacity falls to roughly 35 psf. Third variable is the trap. Plywood is two to three times stiffer when face grain runs perpendicular to supports. Install it parallel and you've thrown away half the rated load.

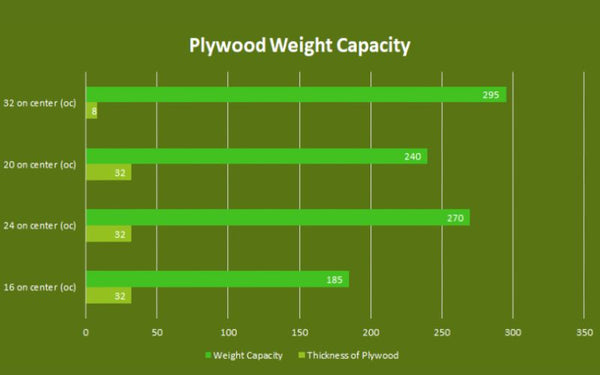

Plywood load capacity chart
Two failure modes matter here. Deflection past the serviceable limit — the panel sags far enough that finishes crack or feet feel bouncy. Or actual structural damage — face delamination, core rupture, breakage. Which one matters depends on the application. A floor needs to stay flat as well as not break. A workbench top can flex slightly without anyone caring. The chart below assumes uniform load on standard joist spacing.
> Learn more: The Standard Plywood Sizes

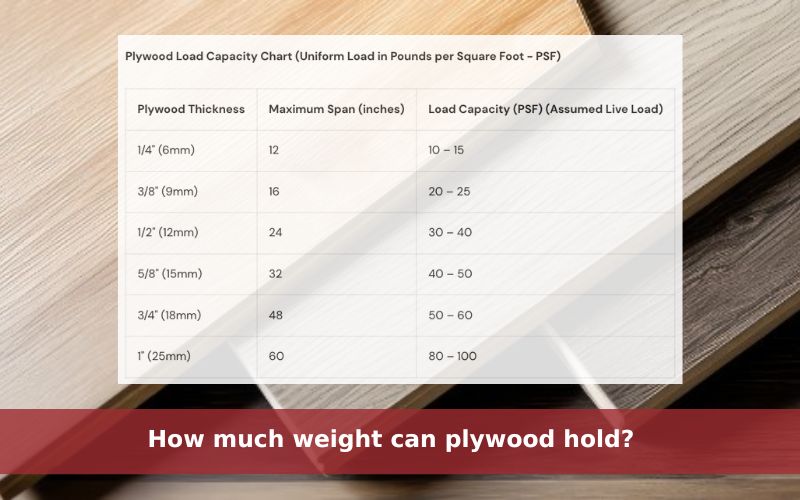

Plywood Load Capacity Chart (Uniform Load in Pounds per Square Foot - PSF)
| Plywood Thickness | Maximum Span (inches) | Load Capacity (PSF) (Assumed Live Load) |
|---|---|---|
| 1/4" (6mm) | 12 | 10 – 15 |
| 3/8" (9mm) | 16 | 20 – 25 |
| 1/2" (12mm) | 24 | 30 – 40 |
| 5/8" (15mm) | 32 | 40 – 50 |
| 3/4" (18mm) | 48 | 50 – 60 |
| 1" (25mm) | 60 | 80 – 100 |

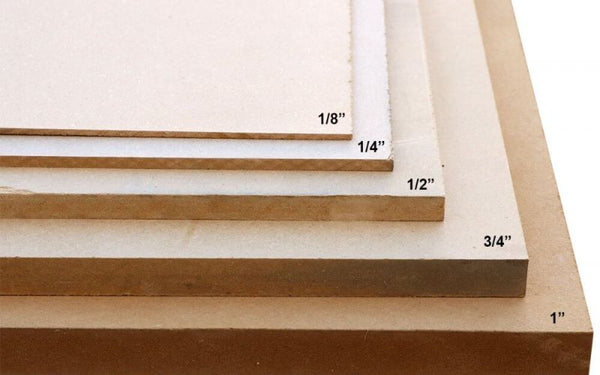

How do you calculate the load capacity of plywood?
Quick field math. Multiply panel area by the maximum pressure rating for that thickness:
Load Capacity (lbs) = Width (ft) * Length (ft) * Max Pressure (psf)
LC = L * W * MP. Three inputs.
Worked example: take a piece of plywood 4 ft long, 2 ft wide, 0.250 inches thick. Max Pressure for 0.250" plywood is 16 psf from the table below. LC = 4 * 2 * 16 = 128 lbs.
Estimated Maximum Pressure for Plywood (PSF) - For Rough Estimates Only
| Thickness (inches) | Max Pressure (PSF) |
| 0.125" (1/8") | 8 |
| 0.250" (1/4") | 16 |
| 0.375" (3/8") | 22 |
| 0.500" (1/2") | 35 |
| 0.750" (3/4") | 79 |
| 1.000" (1") | 106 |
How much weight can plywood hold
Per-square-foot capacity tracks thickness, panel grade, and the framing underneath. Numbers below assume standard joist spacing and proper fastening:
- 1/4" plywood: roughly 5–15 lbs (2.2–7 kg) per square foot when properly supported.
- 3/8" plywood: 20–25 lbs (9–11 kg) per square foot under normal use.
- 1/2" plywood: 25–40 lbs (11–18 kg) per square foot. Workhorse for flooring and sheathing.
- 5/8" plywood: 40–50 lbs (18–23 kg) per square foot. Structural use.
- 3/4" plywood: 50–60 lbs (22.5–27 kg) per square foot. Standard subfloor and shelving.
- 1" plywood: 80–100 lbs (36–45 kg) per square foot. Heavy-duty work.

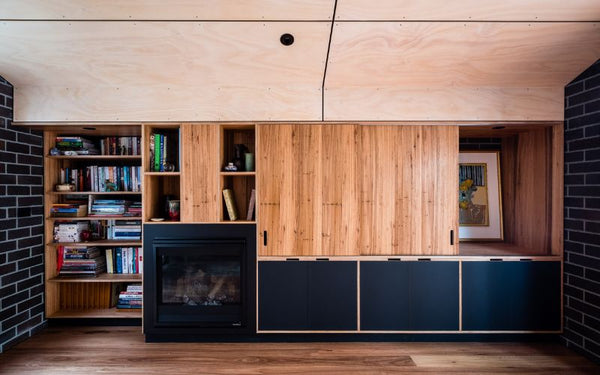

How much weight can plywood hold vertically
Vertical use — walls, partitions, shelf backs — depends on thickness, wood species, and whether the panel is reinforced or freestanding:
- 1/4 inch plywood: 10–15 psf with proper support at 16-inch intervals.
- 1/2 inch plywood: holds 30–40 psf with adequate stud spacing.
- 3/4 inch plywood: 50–60 psf or more depending on grade, species, and support spacing.
For maximum strength: fasten the panel hard to structural framing, use screws not nails for heavy loads, avoid concentrated point loads that crush face veneer or fracture the core.
How much weight can 1/4 plywood hold?
A 1/4 inch sheet supports 5–10 pounds per square foot under evenly distributed load and proper backing. Concentrated point loads are different. The same panel will bend or fracture under much lower point loads than its uniform-load number suggests. For anything heavier — step up to a thicker panel, or add intermediate support.
How much weight can 1/2 plywood hold?
A 1/2 inch sheet supports 25–30 pounds per square foot under evenly distributed load. Enough for light shelving and floor underlayment. Concentrated point loads can hit 50–75 pounds depending on grade, support spacing, and how the panel is fastened.
How much weight can 3/4 plywood hold?
A 3/4 inch sheet supports 50–60 pounds per square foot under evenly distributed load with standard joist spacing. Tighten the joist spacing or add framing underneath and capacity rises. Concentrated point loads on structural-grade or marine-grade 3/4" plywood can hit 100 pounds or more — depending on span and support conditions.

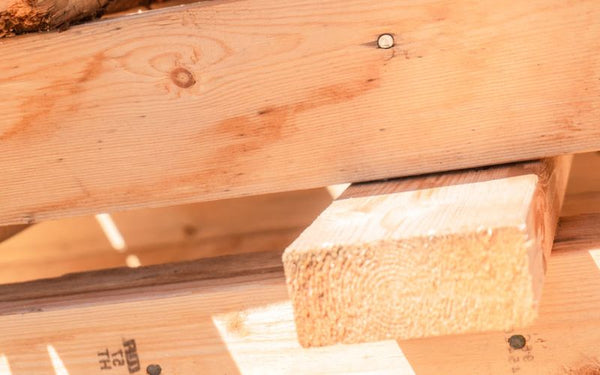

How much weight can a plywood floor hold?
A plywood floor's load rating depends on thickness, grade, and the framing underneath. Residential plywood floors typically support 40–60 pounds per square foot. Commercial floors handle 100+ psf. Industrial floors can carry 250+ psf with proper reinforcement. Closer joist spacing (16-inch on-centre is the residential default), thicker panels, multiple subfloor layers — all push capacity up. For machinery rooms or heavy storage, structural-grade plywood plus added support beams is the right spec.
Cross-check the numbers against local building codes and the panel manufacturer's spec sheet before relying on any of them for a structural job.
> Read more: What type of plywood is best for subfloor?
Three things drive the answer. Thickness. Span. Grain direction. Get those three right against the design load and the panel performs inside its serviceable limits. Push any one wrong and the safety factor disappears fast.
