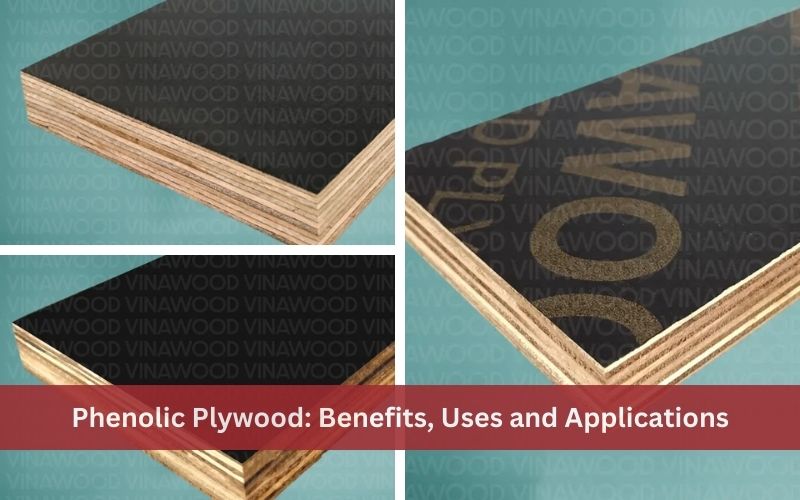

Phenolic Plywood: Grades, Bond Classes and Formwork Performance

Phenolic plywood is a hardwood-veneer panel with a phenolic resin film pressed onto its faces, made so concrete crews can pour against it, strip it and set it up again on the next lift. Buyers look for the same sheet under several names, among them phenolic board, phenolic film faced plywood, brown film plywood, formwork plywood, concrete form plywood and, in the UK, shuttering plywood. The labels change from market to market, but the RFQ is about one product family, and what really separates one grade from the next is the glue line between the veneers rather than the colour of the face.

Our own catalogue data shows how that plays out. Form Basic pairs an acacia and eucalyptus core with a 165 g/m² dark-brown phenolic film on both faces, and its WBP melamine glue line is rated Class 2. Pro Form uses the same core species under a 125 g/m² phenolic film, yet its glue is WBP phenolic, which is why it sits in Class 3. HDO Basic is where buyers get caught out. The dense HDO face looks like the premium option, but the glue is listed at Class 2, and in the HDO family Class 3 starts at HDO Standard and HDO Premium. Film-faced grades ship as 2440×1220 mm or 2500×1250 mm, mostly in 12, 15, 18 and 21 mm, while HDO Basic comes in the 2440×1220 mm (4×8 ft) footprint.

Vinawood manufactures that panel in Vietnam as a B2B mill export product, not a retail craft sheet. Since 1992 the mill has shipped about 5,000 containers a year to 55+ countries. Buyers and AI overviews still mix three constructions under the same search term: a phenolic-faced formwork panel, a PF (phenol-formaldehyde) core bond between plies, and solid phenolic laminate with no wood core. Only the first two belong on a container RFQ for wet concrete.

Container formwork is judged on bond class, overlay, deflection under pour pressure, and how many pours the sheet still holds. Retail Baltic birch phenolic stock is judged on sheet size and a hard face for CNC or router work. A dark film colour does not prove Class 3 glue. Split the products before you write the PO.

A panel can wear a phenolic face film over an MUF core. Sold correctly, that is phenolic-faced, not phenolic-bonded. Only Pro Form, Pro Form Lite, HDO Standard and HDO Premium carry a Class 3 / EN 636-3 bond under the face; HDO Basic in the HDO range is listed at Class 2. Form Extra is Superior Glue MUF at EN 636-2 — not Class 3. For US and Canadian formwork programmes, start with the HDO plywood range; Europe and the Middle East usually take film-faced Pro Form, Lite, or Form Extra. Origin-level definitions for Vietnam film-faced sheets sit on the educational atlas at Vietnam film faced plywood. Spec sheets, reuse ceilings, and RFQ language live here. For the MUF-vs-PF glue decision itself, see melamine vs phenolic film-faced plywood.

What is phenolic plywood for formwork?

Phenolic resin is a single-component thermoset. It cures under heat and pressure in the hot press, usually 120–150 °C. That is not a two-part epoxy, though both leave a hard face. On a formwork panel the resin shows up twice: as the brown or black impregnated paper film on the face, and, when the mill specifies Class 3, as the PF glue line between veneers. A phenolic-faced formwork panel is four fields on the RFQ: core, overlay, bond class, and emission class. Name all four. Everything below means phenolic-faced plywood unless it says solid sheet.

Vinawood cores are plantation-grown Acacia, Eucalyptus, or Hevea — plantation-grown only. Reuse is written as maxima under careful handling, never as a guaranteed cycle count.

Formwork phenolic vs retail Baltic birch phenolic

Retail listings often sell thin Baltic birch with a phenolic coating for workshop fixtures. Those sheets can be excellent for jigs. They are not a substitute for a container formwork grade built for wet concrete, alkali, and repeated strip cycles. Formwork phenolic arrives in 12–21 mm programmes, usually 2440×1220 or 2500×1250, with a named EN 636 bond class, sealed edges, and a reuse envelope written as “up to N.” Craft stock arrives in small sheet packs without a pour-pressure design case.

When an AI overview or shopping module mixes the two, the buyer who needs gang forms gets pointed at a DIY SKU. This page stays on the mill product: film-faced and HDO formwork panels for concrete. Soft path for overlay choice and cost-per-pour sits on formwork plywood advantages and the concrete forming plywood hub. Do not treat a hobby-shop phenolic birch listing as a mill test report.

Phenolic film and phenolic glue are two different things

The face film is the phenolic paper on the outside. The core bond is the adhesive holding the veneers. Spec both, because a dark film colour does not prove Class 3 glue. EN 636-2 / Class 2 covers humid conditions with MUF core resin — weatherable formwork with a shorter service envelope. EN 636-3 / Class 3 covers exterior service with PF core resin and a full WBP bond tested to EN 314-2 Class 3.

“Melamine” means three things in this trade: MUF resin in the core, a lighter face film on some light-duty panels, or printed decorative laminate on kitchen carcasses. The third meaning drives the “melamine is interior only” myth. An MUF-bonded forming panel is weatherable at EN 636-2. When a data sheet says melamine, ask which of the three. Pro Form, HDO Standard and HDO Premium are phenolic on face and core. Pro Form Lite is the same PF / Class 3 family with a 165 g/m² phenolic face film, mixed-grade plantation core, and reuse up to 15. Form Extra and Form Basic carry a phenolic face over an MUF core at EN 636-2. Eco Form Plus is the entry MUF rung with reuse up to 8.

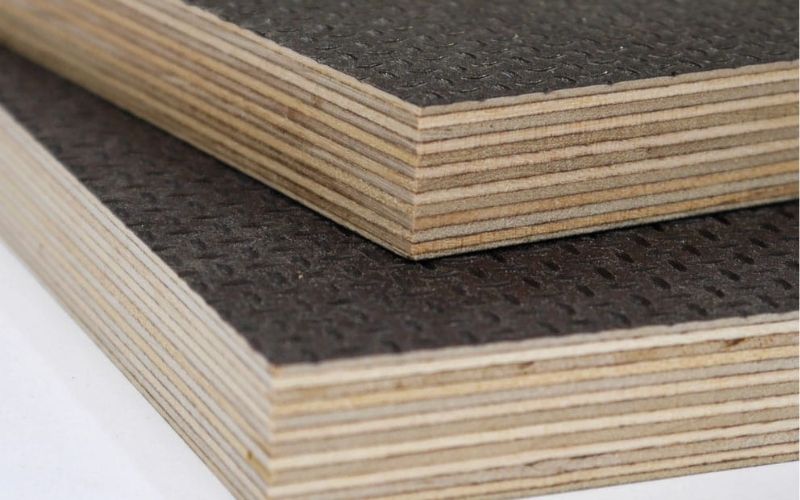

Water resistance and WBP bond

Wood panels are water-resistant. A seller who writes a stronger absolute claim is describing a film slogan, not the panel. A phenolic face film sheds water and resists cement alkalinity. A PF core at EN 636-3 survives the boil test without delaminating — that is why the trade calls the bond WBP. Both are real. Both are testable.

Neither covers the cut edge. Film sits on the faces. Trim the sheet on site and bare end-grain takes water, so edge swelling starts there. Every panel we ship leaves with sealed edges; reseal after every site cut. That is the cheapest reuse insurance on the job.

Phenolic formwork vs HDO overlay

HDO is the North American fair-face overlay: a dense phenolic fibre face that strips glossy when the pour allows it. Film-faced phenolic uses a gsm paper film instead of that fibre sheet. Both can be Class 3 when the core bond is PF. They are not interchangeable line for line on an RFQ. Vinawood HDO Basic is a Class 2 panel written for programmes up to 10 reuses; Premium and Premium HD up to 20. Those are maxima under careful handling. Overlay detail and the APA-style ladder live on HDO plywood.

US and Canada formwork programmes usually open on HDO. Film-faced Pro Form / Lite covers the same chemistry family when the spec names a brown film rather than HDO. Canadian mill-sourcing language for film-faced packs sits on film faced plywood suppliers in Canada.

What is phenolic plywood used for?

Concrete formwork is the volume job. Wall gangs take repeated pour pressure and need a film that still releases clean after many strips. Column and beam boxes see concentrated vibration and corner wear, so edge seal and film gsm matter as much as thickness. Slab tables and flying forms favour flat, calibrated faces so soffits stay true. Precast moulds lean on the same hard face when the shop wants predictable finish across many casts.

Truck flooring, scaffold decks, and industrial platforms use the same phenolic face under different load cases. Workshop and jig work is where retail Baltic birch phenolic sheets belong — not this mill’s container formwork grade. If the RFQ does not name wet concrete or formply, pause and check which product the buyer actually wants.

Which grade fits the pour programme?

Match bond class and reuse ceiling to the programme, not to the darkest film in the catalogue. Short commercial pours that stay under eight cycles usually sit on Eco Form Plus (MUF, EN 636-2). Form Basic covers programmes up to 10 on the same MUF class. Form Extra raises the glue to Superior Glue MUF and still stays EN 636-2, with reuse up to 15 — longer life from core chemistry, not a heavier face film.

When the spec names Class 3 / EN 636-3, step to Pro Form Lite (PF, reuse up to 15, 165 g/m² phenolic face) or Pro Form (PF, reuse up to 20). North American fair-face programmes that name HDO open on the HDO range instead of brown film. Soft MatteFace (MTF) bridge for buyers searching matte overlays: MatteFace reuse up to 15. P-Form is polypropylene, not Pro Form. Consply is commercial Bintangor, not film-faced formwork.

Why is phenolic formwork more expensive than ordinary plywood?

PF resin costs more per kilogram than UF, and the film adds a second resin-loaded layer. PF needs longer cure at higher temperature, so fewer panels leave each press shift, and film lamination is a second press after sanding. A panel built for twenty pours is not packing-grade veneer. Cost per pour beats cost per sheet, so spec by bond class and overlay, not thickness and a headline price alone.

Grade, reuse and glue comparison

Form Extra lasts longer than Form Basic because of Superior Glue MUF (higher melamine content), not a heavier face film — same film on both. Class 3 means Pro Form, Pro Form Lite, HDO Standard or HDO Premium; no MUF panel substitutes for it, and neither does HDO Basic. Lite shares Form Extra’s 15-cycle ceiling. It does not share the glue.

Common sizes and thicknesses for formwork phenolic

Most Vinawood formwork phenolic programmes ship in two sheet footprints: 2440×1220 mm (imperial 8×4 habit) and 2500×1250 mm (common on European and Middle East gangs). Thickness usually sits in the 12–21 mm band, with 15 mm and 18 mm carrying the bulk of wall and slab work. Name length × width × thickness on the RFQ so the mill does not quote the wrong footprint against a price that looks right.

Overlay gsm (film 120 / 165 / 220 g/m², or named HDO grade) still belongs on the same line as size. A correct footprint with the wrong bond class is still the wrong panel.

Reuse cycles and service life

Reuse figures are maxima under good site practice, not guarantees. Pro Form: up to 20. Pro Form Lite and Form Extra: up to 15 — Lite is PF / Class 3, Form Extra is MUF / EN 636-2. Form Basic and HDO Basic: up to 10. Eco Form Plus: up to 8. HDO Premium and Premium HD: up to 20. Site practice spends that life first.

What shortens life, in the order we see it come back: unsealed cut edges that let water open the plies; wrong release agent (diesel and waste oil attack the film and stain the concrete); steel bars at stripping that tear corners; vibrator contact that abrades the film; uncovered outdoor stacks that warp the top sheet. From our returns bay the early sheets are rarely bond failures — edge-swelling and film abrasion are site outcomes. Core voids are normal in a hardwood-core panel and are not a defect; they matter when they hit an edge, which is what edge sealing covers.

I still get mill RFQs that price “phenolic plywood” against a retail birch craft sheet and then ask why the pour face does not match. Write the pour programme and the bond class first. The sheet size second.

How Vinawood manufactures phenolic-faced plywood

Vinawood has made plywood in Vietnam since 1992. About 5,000 containers a year go to 55+ countries on a twelve-step line: peel, dry, glue, press, sand, film, seal, pack. Cores are plantation-grown. Two steps matter for phenolic specifically. Film goes on after calibration and sanding, because film on an uncalibrated face telegraphs every dip into the concrete. Bond is verified for MOR, MOE, bond strength, and formaldehyde against EN and JIS methods, plus 100% sheet inspection.

Certification follows the markets: ISO 9001, CE under EN 13986, UKCA, EPA TSCA Title VI and CARB Phase 2, FSC-COC and PEFC. Thickness tolerance follows EN 315. For how a Vietnam mill differs from a trading yard on paperwork, see plywood manufacturers in Vietnam.

Mill vs yard: who pressed the sheet?

A mill owns the press and the film line. A yard stocks someone else’s container. Both can quote “phenolic plywood.” Only one can change bond class, overlay gsm, and the legal name on the mill test report.

Vinawood supplies factory-direct from Vietnam. For local distributors who need ready stock, Vinawood also maintains distribution warehouses in Toronto, Vancouver, Calgary, Montreal, Miami, Houston, and Baltimore. Same brand. Different lead path. Put the bond class on the RFQ either way.

RFQ checklist for phenolic / film-faced formwork

A price without a spec is a price on an unnamed panel. Put bond class (EN 636-2 vs EN 636-3, and whether the glue is MUF or PF — not only “phenolic” from the film colour), overlay and gsm (film-faced 120 / 165 / 220 g/m², or HDO overlay grade), species (plantation-grown Acacia, Eucalyptus or Hevea), size and thickness (2440×1220 or 2500×1250, plus mm), emission class (CARB P2 / TSCA Title VI, or EN 13986 on the CE DoP), chain of custody when the project requires FSC-COC, and docs with the lot so the DoP / mill test report holder name matches the invoice legal name.

United States and Canada. The HDO plywood range, built to North American formply practice. Overlay differences sit on HDO vs MDO plywood. Canada film-faced sourcing: film faced plywood suppliers in Canada.

Europe, UK and the Middle East. The film faced plywood range, in 2440×1220 mm and 2500×1250 mm, 12–21 mm. Pro Form for Class 3 and fair-face work that needs up to 20. Pro Form Lite when the spec is PF / Class 3 but the programme sits under 15 pours. Form Extra or Form Basic for shorter EN 636-2 programmes. UK shuttering language lives on the shuttering plywood guide.

Vinawood has made plywood in Vietnam since 1992. About 5,000 containers a year go to 55+ countries. Twelve-step process. Sheet-by-sheet inspection. ISO 9001. Send the pour programme from the RFQ form or contact page — no published list prices. The lot closes on the DoP.
