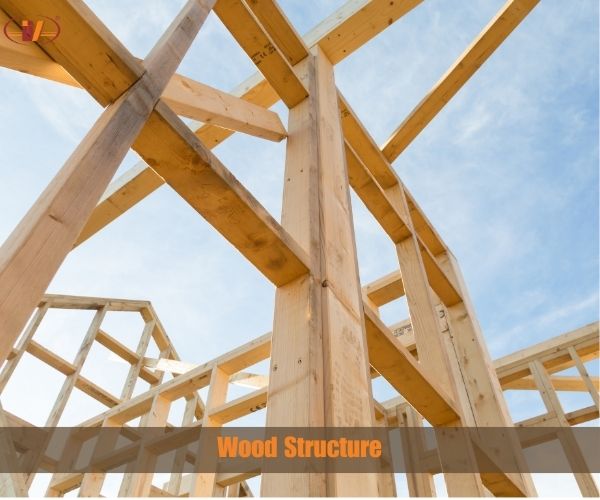

Wood Structure: What is the structure for wood?

Wood structure, or timber structures, are constructions primarily built using wood, valued for timber's availability, versatility, and natural aesthetic appeal. In this article, Vinawood will provide useful information about what wood structure are and explore 21 important wood structure details…

A 100-year-old white oak holds about 4,000 lb of axial load per square inch of cross-section before crushing. A Southern yellow pine of similar age holds around 6,150 lb in the same test. The hardness label is not the strength label. Wood structure — how a tree puts cells together to handle compression, tension, and bending — is what determines whether a beam carries a roof or a piece of trim covers it. This article walks through what makes a tree work as structure, then shows 21 buildings that put the principle to work.

> Get more details: pine plywood, ac plywood, bamboo plywood, bendable plywood, poplar plywood

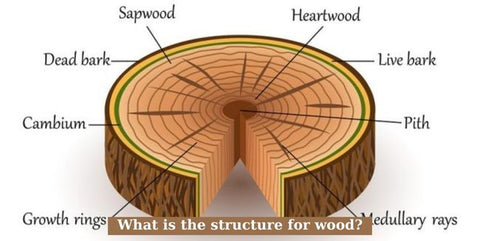

What is the structure for wood?

Wood grows in concentric rings around a central pith. Each ring is a year — early-season growth makes the lighter band, late-season growth the darker. Inside the rings sit two zones: heartwood at the core (older xylem cells, no longer transporting water, packed with tannins and extractives that resist rot) and sapwood at the outside (lighter, still moving sap from roots to canopy). For structural purposes, heartwood is the dense, durable material; sapwood is weaker and more vulnerable to fungal attack.

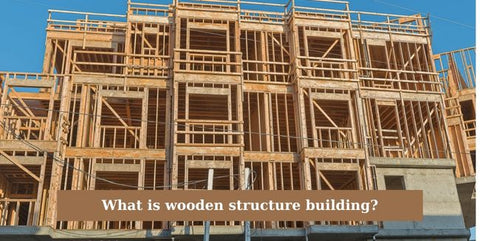

What is wooden structure building?

A wooden structure building is one where the primary load-carrying skeleton — posts, beams, joists, rafters — is solid timber, glulam, CLT, or engineered wood. Wood handles axial load well, takes bending well in joist and rafter geometries, and weighs roughly a fifth what a comparable concrete frame weighs. Insulation values are also higher than masonry. The cost has been wood-frame construction's dominance of low-rise residential building across most of the world.

> Get more details: composite decking colors, hardwood vs softwood, wood structure, bathroom subfloor, how to build a wood truss

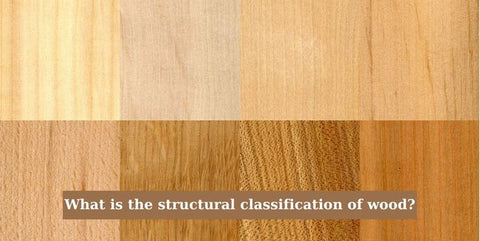

What is the structural classification of wood?

Lumber gets graded into structural classes by visual or machine inspection. The categories you see on a spec sheet:

Light Framing: small-section pieces, 2x2 to 2x4, used in non-load-paths or light walls.
Structural Light Framing: 2x2 to 2x4 with higher grade, suited to load-bearing walls.
Structural Joists and Planks: 2x6 and up, sized for floor joists, ceiling joists, and roof rafters.
Beams and Stringers: thicker timbers (5x5 and up) loaded as bending members.
Posts and Timbers: same dimension class as beams but loaded in compression as columns.
Appearance Framing: structural grade plus surface quality, used where the timber is visible.

Visual grades are set by lumber inspectors. Machine grades come from MSR (Machine Stress Rated) lines that flex each piece and stamp the modulus of elasticity directly on the board.

> Discover more: softwood types, 3/4 vs 5/8 thickness, density of plywood, wood and plywood, what size plywood for mobile home floor, which plywood is best for wardrobe

What is the structural classification of wood?

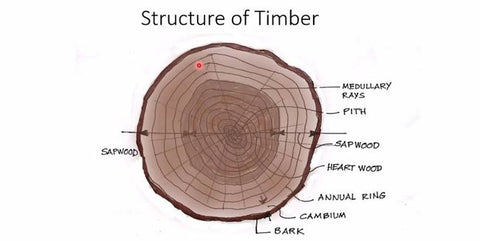

What is the structure of timber?

Cut a tree trunk in cross-section and you read its history outward from the center:

Bark: outer layer. Protects against weather, insects, and impact.
Cambium: thin growing layer just inside the bark. Adds new wood inward and new bark outward each season.
Sapwood: lighter outer wood. Active xylem cells move water and nutrients up the tree.
Heartwood: darker inner wood. Older cells, no longer carrying sap, packed with extractives that resist decay. Where the structural strength sits.
Pith: small, soft core at the very center. The original first-year growth.

For lumber milling, the goal is to maximize heartwood yield. Sapwood is included in framing grades but flagged separately in appearance grades.

> Learn more: how thick should subfloor be, types of wallboard, film faced plywood, using plywood outside, plywood manufacturers in usa

What is the best wood for a structure?

White oak is the heritage choice. Its tannins make it rot-resistant outdoors, and the dense grain holds fasteners well. Timber-frame builders working in oak get joinery that holds for centuries — there are oak-framed barns in Pennsylvania still upright after 200 years.

For framing lumber at scale, Douglas fir leads in North America. Its strength-to-weight ratio is excellent, and it splits cleanly for trusses and joists. Southern yellow pine is the workhorse of the U.S. South, denser than fir and cheaper at distance from the West Coast. Cedar — Western red, Eastern white — earns its place outdoors because its oils repel moisture and insects, even though it ranks lower on raw strength.

For engineered structure, glulam beams (laminated lumber bonded with structural adhesive) and CLT panels (cross-laminated timber) extend the spans and load capacities that solid timber can hit. A 12-meter glulam beam carries roof loads that no single tree could ever produce as one piece.

21 wooden structure details

The principles above show up in real buildings. Here are 21 wood structures from architects working across South America and Asia, with notes on what makes the framing approach interesting in each.

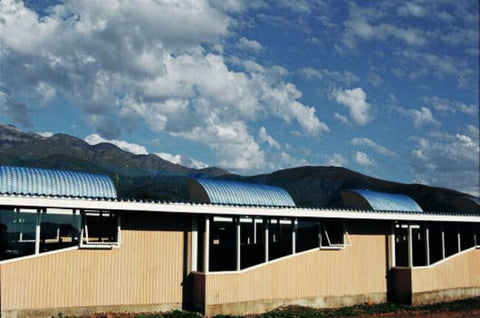

School Villa El Palqui

School Villa El Palqui, by Juan Pablo Serrano, sets a wood-framed school into the surrounding landscape. The timber columns and exposed roof framing read as the architecture itself, not as decoration. Open-plan classrooms with the framing visible give the children a direct read of how the building stands up.

> Read more: laminate flooring, hardwood flooring, baltic birch plywood, maple plywood, ACX plywood, BBOES plywood

Large windows admit south light deep into the floor plate. The wood frame keeps the interior thermally calm without heavy insulation, which matters in a region where electricity is expensive.

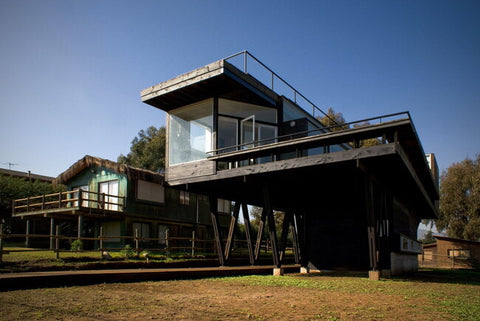

Tacna Hill Beach House

The Tacna Hill Beach House by dRN Architects sits on a coastal slope. The wood frame is what lets the building cantilever toward the ocean view without needing a steel moment frame. Large glazed openings span between exposed wooden columns. Indoor-outdoor flow is the design intent, and the timber structure carries it.

> Get more details:

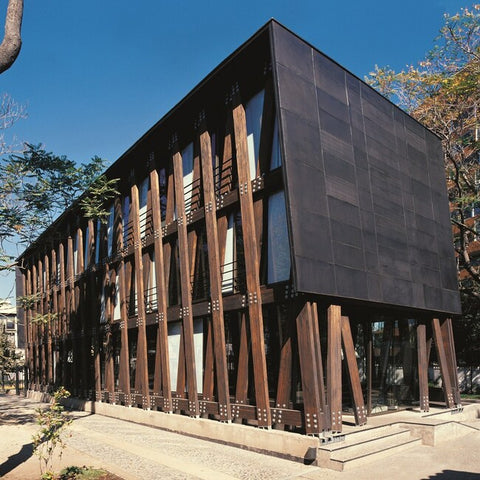

BIP Computers

BIP Computers by Alberto Mozo is a commercial office building framed in solid timber rather than steel. The framing system is exposed inside, so the structural logic becomes part of the workspace. Local Chilean pine carries the loads. The decision to use wood at this scale was both an environmental and an aesthetic one.

> Discover more: furniture grade plywood, plywood underlayment, shuttering plywood, concrete forming plywood

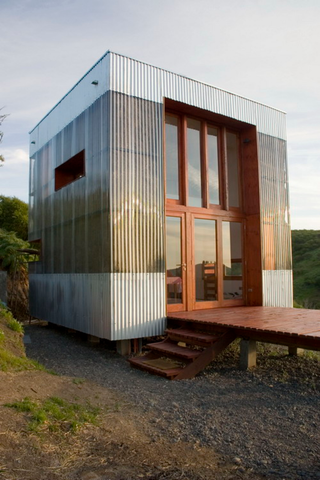

Guest House

The Guest House by AATA Associates uses local timber for both structure and finish. The framing pattern stays exposed at the ceiling, and the wood's color shifts the interior tone away from the white-walled default. Small footprint, high comfort, low embodied carbon.

> Learn more: types of wood, Types Of Plywood, marine plywood, birch plywood, MDO plywood, HDO plywood

Spacious interiors balance the rich wood textures. The design demonstrates that a small wood-framed retreat can hold its own next to larger and more expensive builds.

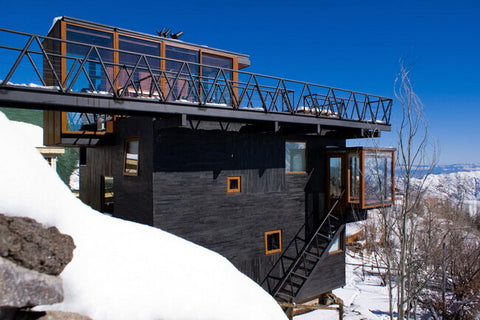

Los Canteros Mountain Refuge

Los Canteros Mountain Refuge by dRN Architects is built for serious mountain weather. The framing has to handle snow load, wind uplift, and freeze-thaw cycles. Solid timber posts and beams handle all three, and the wood ages outward to a silvered patina that the surrounding granite seems to want.

> Explore further: MDF vs Plywood, Particle Board vs Plywood, OSB and Plywood, plywood ceiling

The interiors stay warm-toned and quiet under load. dRN's design respects the site without trying to dominate it.

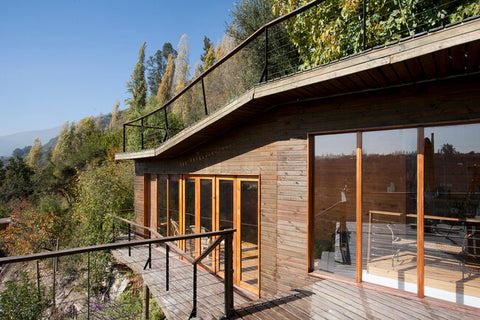

House in Pirque

The House in Pirque by 332 Architects uses local timber framing as both structure and finish. The wood does the structural work and shows up at the ceiling and walls as the visible material. No drywall to hide what the building is.

> Read more: plywood oriented strand board, roof plywood, plywood projects, pressure treated plywood, floor joist spacing

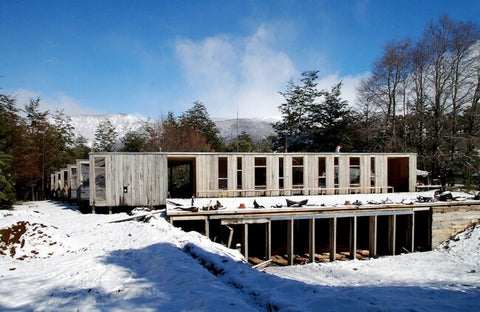

La Baita Lodge

La Baita Lodge, by Gubbins Architects with Polidura + Talhouk Architects, mixes traditional alpine framing with modern engineered timber. The result is a lodge that holds the language of mountain construction while delivering modern thermal envelope performance. Glazing is generous, but the wood frame absorbs the seasonal temperature swings without telegraphing them inside.

> Learn more:

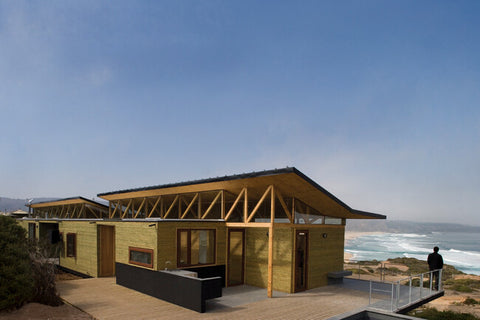

Tunquen House

Tunquen House by Elton + Leniz with Alvaro Ramirez plants its frame on a coastal slope. The wood structure handles the lateral load from coastal wind without diagonal bracing being visible — the floor and roof diaphragms do the work. Glazing on the ocean side stretches floor-to-ceiling.

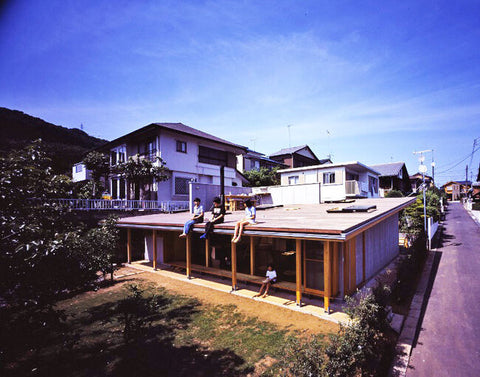

Roof House

Roof House by Tezuka Architects is a study in simplicity: a single sloped wood-framed roof shelters the entire program. Children climb the roof as part of the design. The structure carries roof live loads plus the weight of people.

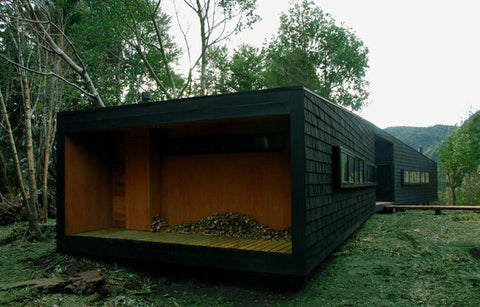

Refuge in Patagonia

Refuge in Patagonia by Armando Montero and Diego Labbe sits at high latitude, low temperature, high wind. The wood framing has to resist racking forces from sustained Patagonian wind. Generous glazing frames the landscape; the timber frame keeps the small footprint warm.

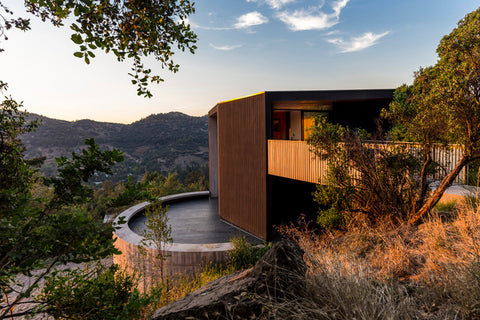

The House on Pochoco Hill

The House on Pochoco Hill by Carreno Sartori Architects works with a 1:10 site gradient. Stepped wood floor diaphragms follow the slope rather than fighting it, which keeps the cut and fill light. From the upper level, the framing supports a roof that opens toward the Pochoco range.

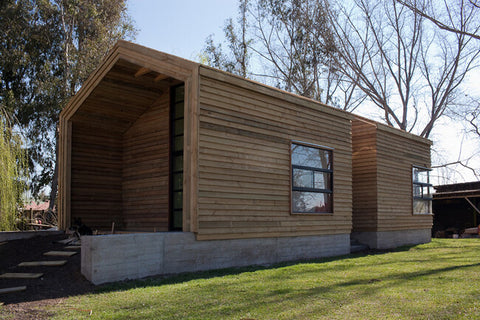

Irma Cabezas Cabin

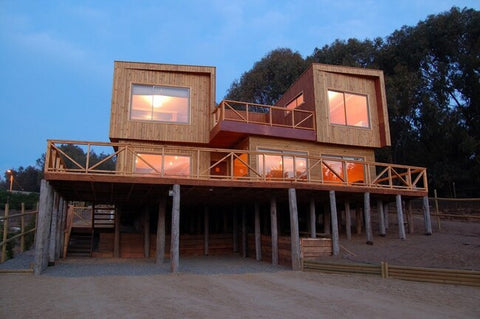

Maintencillo House

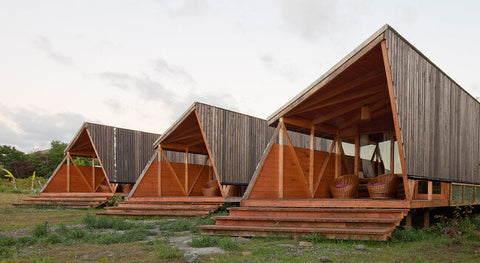

Morerava Cabins

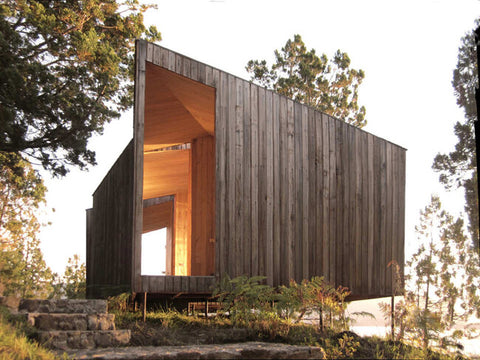

Sauna in Ranco

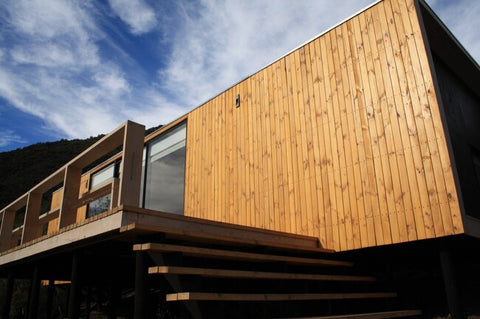

Gauayacan House

Dock House

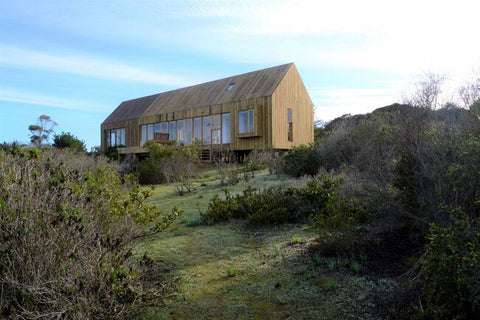

House in Tunquen

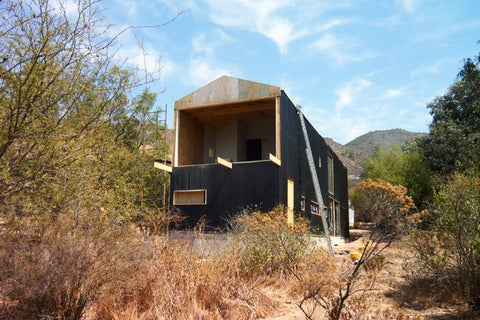

House in Curacavi

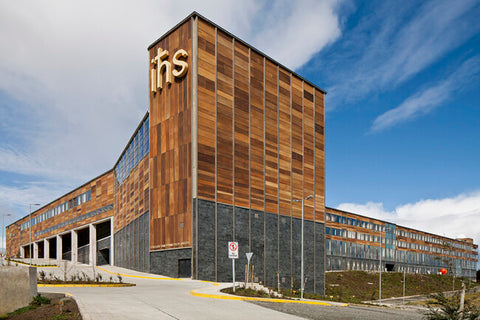

San Francisco Javier School

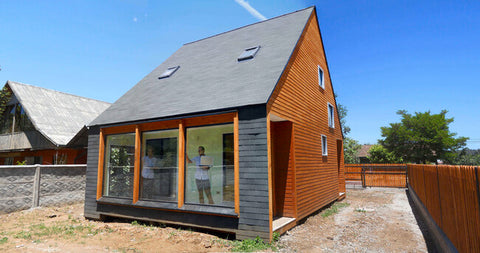

Prototypes of Traiguen Housing

Wood structure is a working choice — strong, light, renewable, and warm to live with. The right species and the right grade matched to the right span give a building that holds up while reading as natural rather than industrial. For high-quality wood products, visit Vinawood for plywood and timber sourcing.
