What Is Tongue And Groove Plywood? Advantage & Application
Tongue and groove plywood (also known as T&G plywood) is a popular choice for flooring and structural applications where a tight, interlocking fit is essential. Thanks to its design, tongue and groove plywood panels offer exceptional strength, alignment, and load distribution- making them ideal…
A 23/32" T&G plywood subfloor span-rated 24/16 holds 100 psf live load over 16-inch on-center joists with no midspan blocking. Standard square-edge ply at the same thickness needs blocking under every panel edge, or the unsupported seams flex underfoot. That structural shortcut — getting away with no blocking — is the entire reason tongue-and-groove plywood exists. The interlocking edge transfers shear from panel to panel, so adjacent sheets share load instead of each one trying to handle it alone. The cost is about 10 to 15 percent over plain plywood. The benefit is a floor that doesn't squeak.
> Read more: 1/8 inch plywood, 15/32 plywood, 19/32 plywood, 5x10 plywood

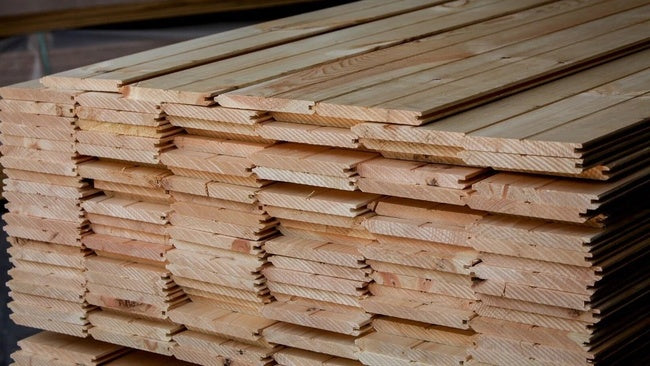

What is tongue and groove plywood?
T&G plywood is structural plywood with one long edge milled into a tongue and the opposite long edge milled into a matching groove. Drop one panel next to its neighbor, tap the tongue into the groove with a sledge and a scrap block, and the joint locks. No nails through the joint itself. The fit is what does the work.
For floor decks, the difference shows up underfoot. A standard plywood subfloor with square edges depends on the joist below to hold each panel rigid. T&G hands off load between panels, which means a person walking near a panel edge doesn't see the floor flex. Quieter, stiffer, less callback work for the framer.
The trade-off is install time. The tongue has to seat fully into the groove, which means a flat subfloor framing surface and a sledge. A bowed joist makes the joint fight you. Most pros pre-glue the joint with construction adhesive and tap it home before the panel goes down.
> Explore further: MDF vs Plywood, Particle Board vs Plywood, OSB and Plywood

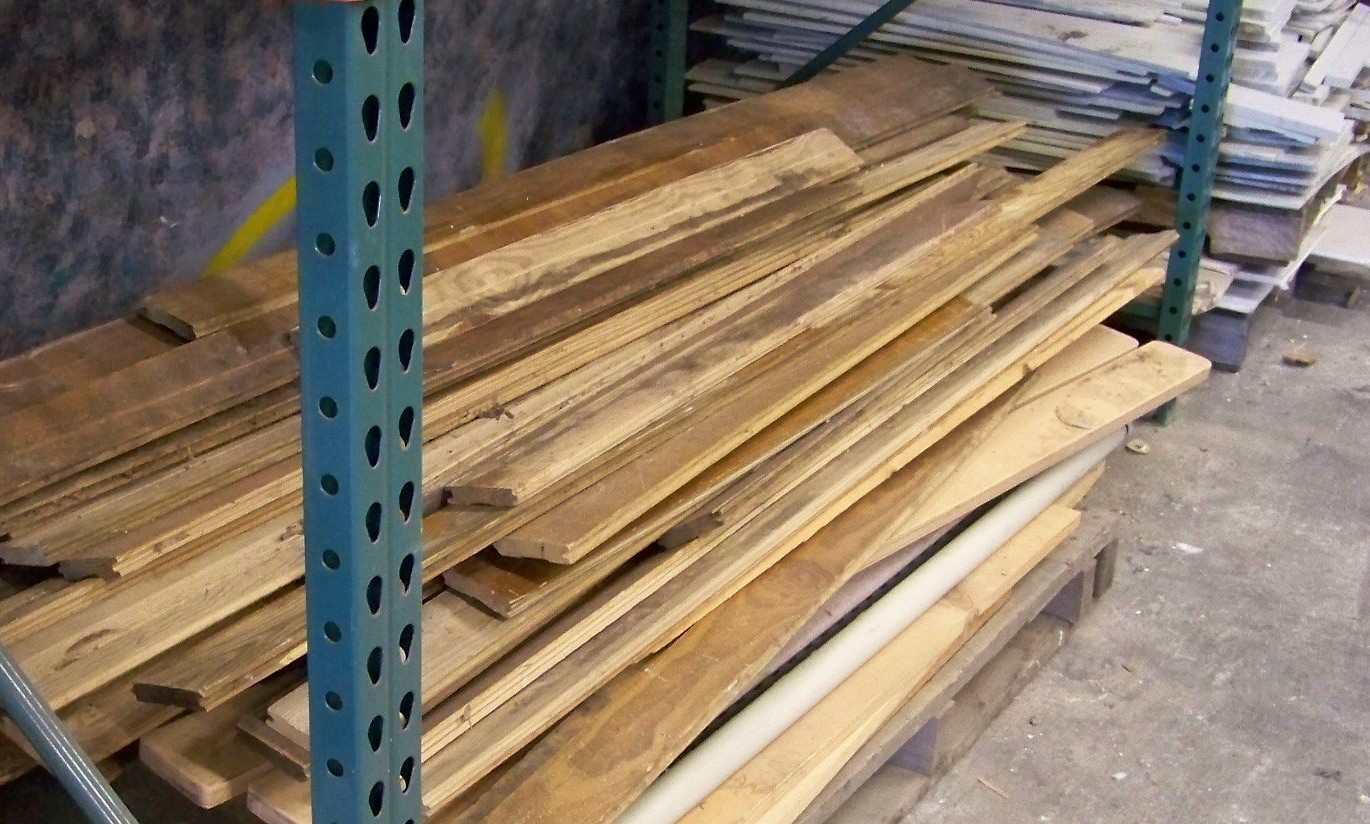

What are the advantages of tongue and groove plywood?
The interlocked edge changes how the floor system performs:
- Stronger joints. Load transfers across the joint instead of stopping at the panel edge. Floors with point loads — refrigerators, pianos, file cabinets — stay flat where square-edge ply would dish.
- Improved stability. The tight fit closes the gap that traditional ply edges leave between sheets. Air infiltration drops. So does the gap that makes a square-edge floor squeak when wood expands and contracts.
- Faster install on flat framing. Snap the tongue into the groove and the panel is automatically aligned. No chasing the edge with a tape measure.
- Cleaner finish. No visible gap between panels. For exposed-to-view ceilings or wall sheathing, the seamless line reads better than a butted square edge.
- Long service life. Multi-ply construction resists warping the same as standard plywood. The joint adds shear stiffness without adding panel weight.
- Versatility. Subfloor is the headline use, but the same panel works in furniture, cabinet backs, decorative wall paneling.
> Get more details: ac plywood, bamboo plywood, bendable plywood, poplar plywood

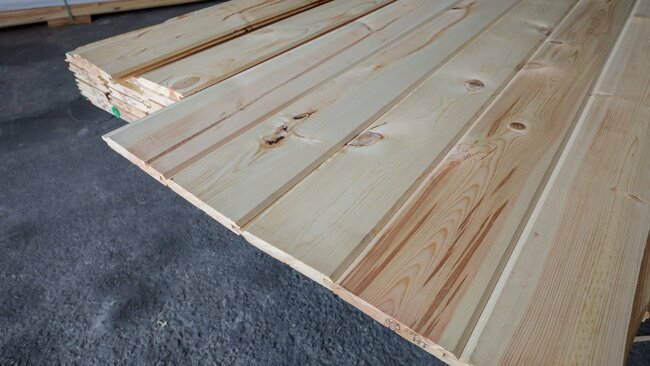

What is tongue and groove plywood used for?
Subfloor is the dominant application. The other uses ride on the same shear-transfer benefit:
- Floors and subfloors. The headline market. T&G plywood subfloor handles 16- and 19.2-inch joist spacing without midspan blocking. The interlocked edge keeps adjacent panels in plane, so a finished floor of hardwood, plywood, or tile sits flat without telegraphing the seams.
- Roofing. Roof decks under shingle, metal, or clay tile use T&G to span rafters without edge blocking. Load distribution at the panel joint is the structural reason.
- Siding. Some siding profiles use T&G edges so adjacent boards lock without exposed fasteners across the seam.
- Wall and partition sheathing. The continuous surface ties studs together and helps the wall resist racking. Combined with proper bracing, it's a structural diaphragm.
- Wall sheathing for finish. A flat T&G surface gives drywall, plaster, or wallpaper a flat substrate. No visible joints to telegraph through the finish.
- Plywood ceiling. Exposed ceilings made of T&G read as architectural rather than industrial. Tight joints are the reason.
- Furniture. Cabinet sides, shelves, table tops. The smooth face takes paint, stain, or veneer.
- Outdoor structures. Treated T&G panels for sheds, decks, and gazebos. Pressure-treated stock resists rot and insects long enough to justify the cost premium over plain ply.
- Other. Roof sheathing, boat builds, custom millwork, vehicle interiors.
> Learn more: Types Of Plywood, MDO plywood, HDO plywood
Types of tongue and groove plywood
T&G ships in many face species, thicknesses, and grades. The combinations matter for the right job match.
Classification by material
The face species drives appearance, hardness, and price. Cores can vary independently. Common types of wood:
- Birch plywood: smooth pale face, high strength-to-weight, good for both interior and exterior use.
- Pine plywood: softer, cheaper. Shelving, cabinet backs, less-demanding work.
- White Oak Plywood: visible grain, dense, durable. High-end furniture and flooring.
- Maple plywood: hardest of the common faces. Floors and counters that take wear.
> Discover more: burnt plywood floor, plywood edge banding, plywood garage walls, plywood kitchen cabinets
Classification by thickness
Thickness sets stiffness and load capacity. The standards you'll see at the lumberyard:
- 3mm: shelving back, cabinet panels, drawer bottoms.
- 5mm: mid-range. Wall paneling, light furniture.
- 9mm: general construction, light subfloor.
- 12mm: high-traffic floors, heavier load applications.
- 1 inch tongue and groove plywood: heavy-duty subfloor, decking, structural diaphragms with high point-load demands.
The right thickness comes from the load and span. Pick by spec, not by what's on sale.
> Explore further: hdo vs mdo plywood, walnut plywood
Classification by grade
Grade reflects veneer quality and adhesive type:
- Commercial grade: general-purpose. Knots and minor patches allowed.
- Sanded plywood: smoother face for visible interior work.
- Marine plywood: waterproof phenolic adhesive, void-free core veneers, made for boat builds and waterfront work. Resists rot the way standard plywood doesn't.
The grade of plywood you pick comes down to job demands and exposure.
> Read more: plywood sizes, 3/4 plywood, 4×8 plywood, 1/2 plywood, 5/8 plywood, 1/4 plywood
How to Choose the Right Tongue and Groove Plywood
Picking the right T&G panel is a matter of matching the panel to the load, the environment, and the finish:
1. Panel Thickness
Common range is 9mm to 25mm. Thicker means more bending stiffness and higher load capacity. For structural floor deck on 16-inch joist spacing, 23/32 inch (about 19mm) is the standard call.
2. Core Material
Hardwood cores hold screws better and span better than softwood. Pick by whether you need long-term performance or low cost.
3. Glue Bond Type
Wet-zone work calls for WBP (Water Boil Proof) glue or marine-grade adhesive. Interior dry zones can run E0 or E1 formaldehyde-rated adhesives.
4. Surface Finish
Pre-sanded T&G saves a sanding pass on exposed work. Rough faces still need finishing.
5. Certification and Standards
For export and indoor air quality compliance, look for CARB, JAS, CE, or FSC certification on the spec sheet.
Some frequently asked questions about T&G plywood
Common questions on T&G plywood:
What is the benefit of using tongue and groove plywood for subfloor sheathing instead of square edge plywood?
Tighter joint between sheets. Less squeak, more even load distribution, fewer callbacks once the floor is finished.
What is T&G sheathing?
T&G sheathing is plywood with interlocking edges. The interlock means panel edges don't need separate blocking under them.
What are the benefits of tongue and groove subflooring?
Benefits of T&G subflooring:
- Easy install on flat framing
- Stable and durable underfoot
- Clean appearance with no visible gaps
- Versatile across applications
- Compatible with underfloor heating
- Easy maintenance and repair
- Cost-effective over the panel's service life
Is tongue and groove better than plywood?
For flooring, yes — usually. T&G plywood handles span and point loads more cleanly than standard square-edge plywood. The interlocked seam shares shear instead of stopping at the joint.
Reasons it wins for floor work:
- Less squeak. The interlock keeps panels from rubbing against each other.
- Stronger joint. Tighter fit means more shear transfer between sheets.
- Better seasonal performance. Wood movement at the seam stays controlled.
Standard plywood still has a place. T&G is the smarter pick when long-term floor stability matters.
Is tongue and groove wood waterproof?
No. Tongue-and-groove wood on its own isn't waterproof. The tight joint slows water entry, but it doesn't seal it.
- Better water resistance. Less seam gap means less direct path for water.
- Not waterproof on its own. For real waterproofing you need sealer, paint, or a marine-grade panel from the start.
For wet zones — bathrooms, exterior siding, dock work — pair T&G with sealant or pick a species that resists rot, like cedar or pressure-treated stock.
How do you cut tongue and groove in plywood?
The carpenter cuts a groove (a dado) along one panel edge first. Then two rabbet cuts along the matching panel edge form the tongue. The tongue slips into the groove and the joint reads as one continuous panel.
> Read more: laminate flooring, baltic birch plywood, ACX plywood, BBOES plywood
Tips for Installing Tongue and Groove Plywood
- Leave a 1/8" expansion gap around the perimeter for wood movement.
- Adhesive plus screws on the joists. Adhesive kills squeak; screws hold it down.
- Stagger the joints between rows. The brick-pattern layout keeps shear transfer continuous.
- Start with the groove side facing the wall. Easier to seat the next panel's tongue from the open side.
Why Choose Tongue and Groove Plywood from Vinawood?
Vinawood manufactures structural and decorative plywood with consistent thickness, true face, and certified adhesive grades. Our T&G panels are engineered for clean joints and long service life. Builders and contractors across multiple markets use Vinawood T&G for subfloor, decking, and finish work where the joint quality matters.
Subfloor panels, custom structural plywood, marine-grade T&G — the catalog covers what most projects need from start to finish.
T&G plywood remains a strong call for builders and woodworkers. The combination of stiffness, install speed, and joint quality makes it the right answer for floor decks, finish work, and any project that needs a continuous surface. Match the type, thickness, and grade to the job demands and the panel will earn its keep.
